UMK- PVB 2/32/ZFKDS - Potential distributors

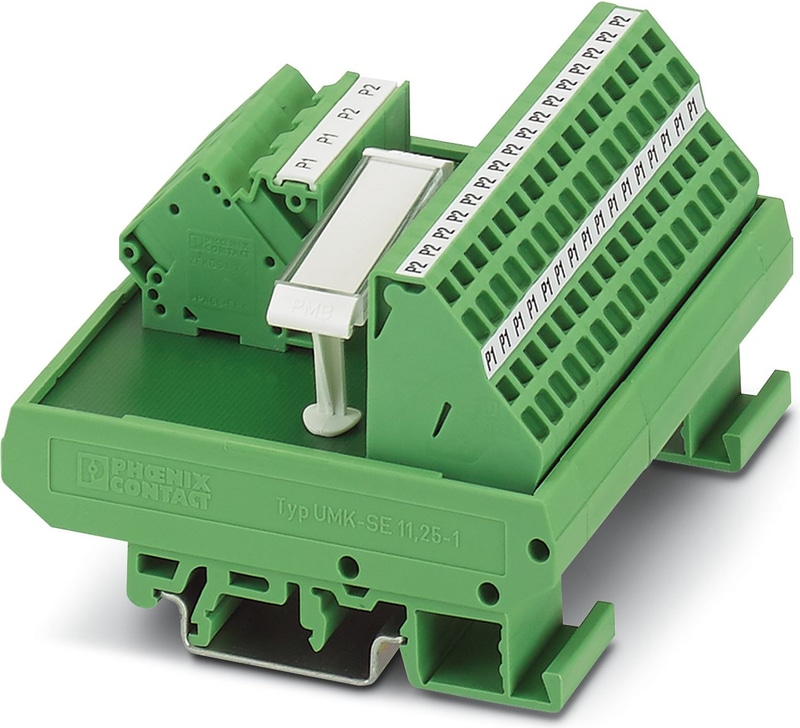

VARIOFACE module, with two equipotential busbars (P1, P2) for potential distribution, for mounting on NS 35/7.5 or NS 32. Module width: 90 mm
- Consecutive numbering
- Two potential levels
- Separate supply
Technical Specifications
Notes
| Notes on operation | The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates). |
| Notes on operation | Ensure that the supply voltage of the device has a common reference potential. |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product properties
| Product family | VARIOFACE |
Insulation characteristics
| Insulation | Functional insulation |
| Insulation | Functional insulation |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 250 V AC/DC |
| Max. current carrying capacity per branch | 17 A |
| Max. total current of all branches | 32 A (per potential) |
| Rated Insulation Voltage | 260 V |
| Rated surge voltage | 2.3 kV |
Service Entrance
| Connection Method | Spring-cage connection |
| Stripping length | 8 mm |
| Number of Connections | 2 |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 10 |
Distribution
| Connection Method | Spring-cage connection |
| Stripping length | 8 mm |
| Number of Connections | 32 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 90 mm |
| Height | 77 mm |
| Depth | 51.5 mm |
Material specifications
| Color | green (RAL 6021) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | EN 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Accessories
Why Proax for Phoenix Contact 2302379?
Proax is an authorized distributor of Phoenix Contact 2302379 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
