Series UMK-PVB
UMK- PVB - Potential distributors

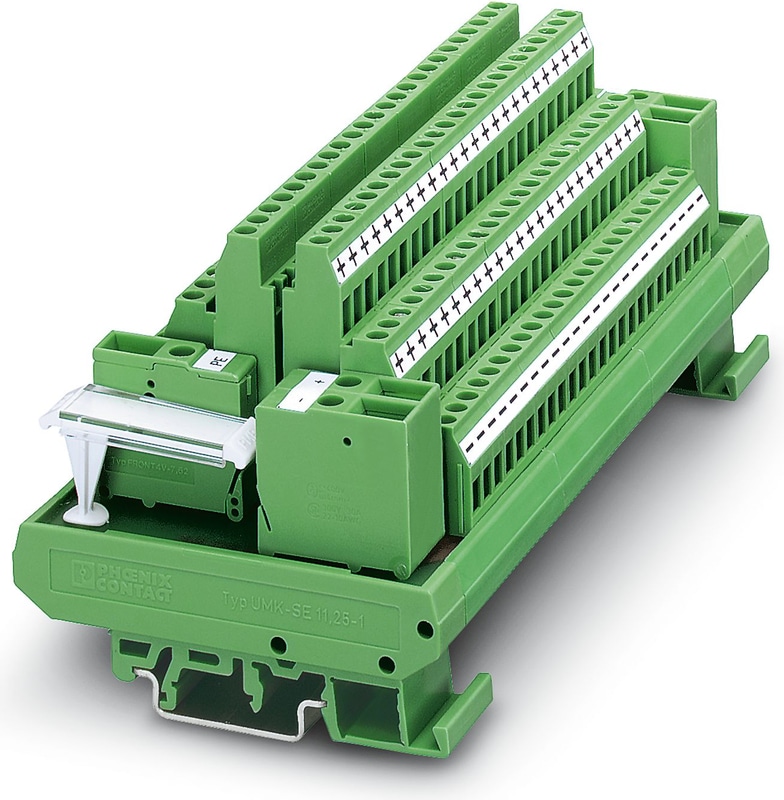

VARIOFACE module, with three equipotential busbars (+, -, PE) for potential distribution, for mounting on NS 35/7.5 or NS 32
- Consecutive numbering
- Separate supply
- Two potential levels
Technical Specifications
Notes
| Type of insulation housing | Polyamide PA non-reinforced |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product properties
| Product family | VARIOFACE |
| Potential connections | Per potential (Plus) 2 power/48 distributor terminal blocks Per potential (Minus) 2 power/24 distributor terminal blocks Per potential (PE) 2 power/72 distributor terminal blocks |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 250 V AC/DC |
| Max. current carrying capacity per branch | 16 A |
| Max. total current of all branches | 16 A (per potential) |
| Rated Insulation Voltage | 250 V |
| Rated surge voltage | 2.2 kV (Functional insulation) |
Input data
| Potential connections | Per potential (Plus) 2 power/48 distributor terminal blocks Per potential (Minus) 2 power/24 distributor terminal blocks Per potential (PE) 2 power/72 distributor terminal blocks |
Service Entrance
| Connection Method | Screw connection |
| Screw thread | M3 |
| Number of Connections | 3 |
| Conductor cross section rigid | 0.5 mm² ... 6 mm² |
| Conductor cross section flexible | 0.5 mm² ... 4 mm² |
| Conductor cross section AWG | 20 ... 10 |
Distribution
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 168.8 mm |
| Height | 77 mm |
| Depth | 72 mm |
Material specifications
| Color | green (RAL 6021) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
