Official DistributorSKU
MPN
EMG100-H 35MM KLAR
Weight
0.033 kg
Series EMG100-H

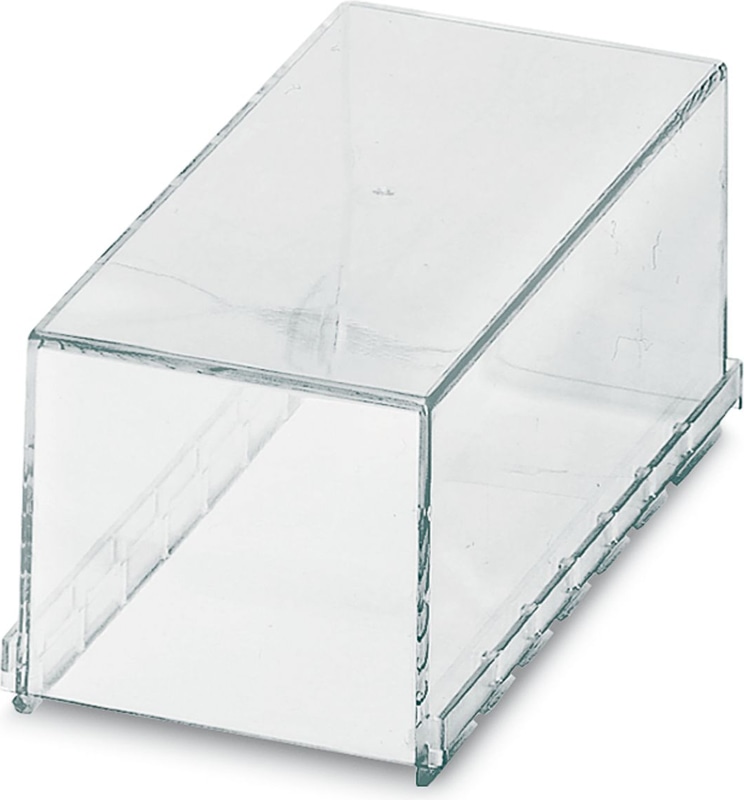

EMG100-H 35MM KLAR - Covering hood
Covering hood, for the contact and dust-protected encapsulation of the components, in transparent design. Height: 35 mm, width: 100 mm
Technical Specifications
Product properties
| Housing type | Component housing |
| Housing series | EMG |
| Product family | EMG100 |
| Number of Positions | 38 |
| Type | Covering hood |
| Ventilation openings present | no |
Dimensions
| Width | 100 mm |
| Depth | 75 mm |
| Length | 38 mm |
Material specifications
| Color | transparent |
| Color (Housing) | transparent |
| Flammability rating according to UL 94 | V2 |
| Housing Material | PC |
| Surface characteristics | untreated |
Ambient conditions
| Degree of Protection | IP20 |
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C |
Mounting
| Mounting Type | Snap in |
Why Proax for Phoenix Contact 2942218?
Proax is an authorized distributor of Phoenix Contact 2942218 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
