Official DistributorSKU
MPN
EMG100-LG/MSTB GY
Weight
0.081 kg

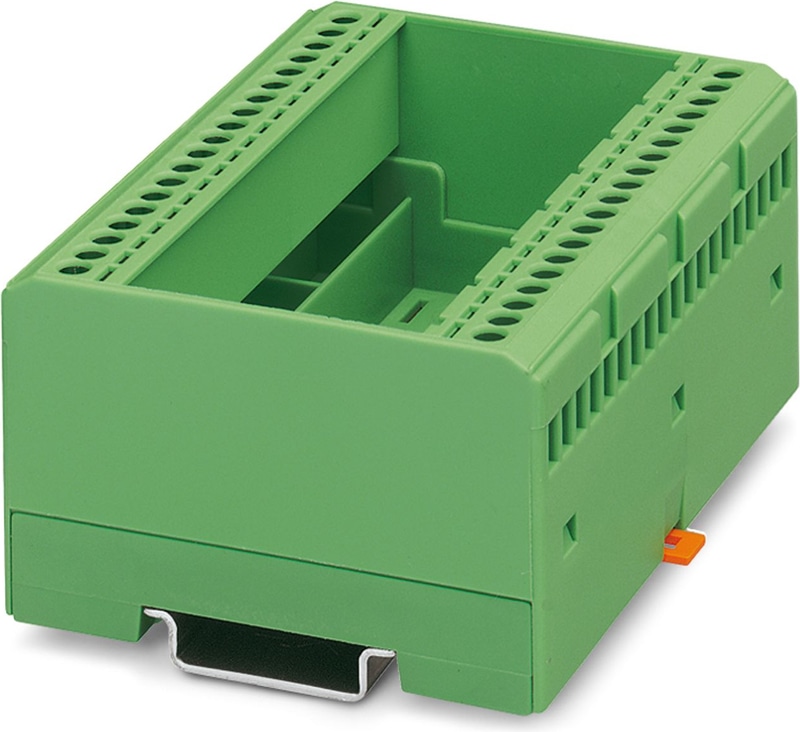

EMG100-LG/MSTB GY - Electronics housing
Electronic housing, for PCB insertion, without screw connection terminal blocks and cover, with lateral opening for connector
Technical Specifications
Product properties
| Housing type | Component housing |
| Housing series | EMG |
| Product family | EMG...-LG |
| Type | Lower part of housing, removable cover optional |
| Number of Positions | 38 |
| Pitch | 5 mm |
| Type | Lower and upper part, with lateral opening for connectors |
Dimensions
| Width | 100 mm |
| Height NS 35/7,5 | 55 mm |
| Height NS 35/7,5 | 83 mm |
| Height NS 35/7,5 | 100 mm |
| Depth | 75 mm |
| Length | 75 mm |
| Pitch | 5 mm |
Material specifications
| Color | light grey |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polycarbonate, glass-fiber-reinforced |
| Surface characteristics | untreated |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Why Proax for Phoenix Contact 2908391?
Proax is an authorized distributor of Phoenix Contact 2908391 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
