2906283
Official DistributorSKU
PHX2906283
MPN
EMG100-LG/SET
Weight
0.158 kg
This product is Not Cancellable/Not Returnable

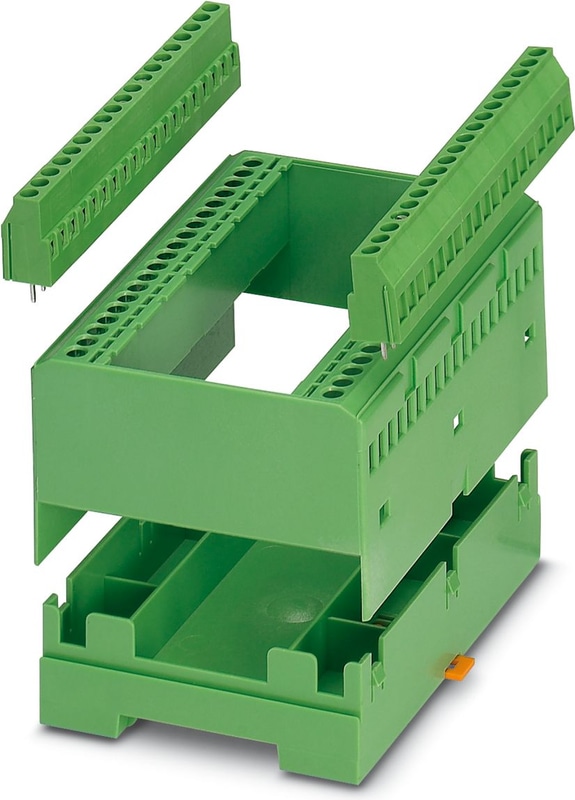

EMG100-LG/SET - Electronics housing
Electronic housing set, consisting of electronic module and printed circuit termination blocks, pitch 5
Technical Specifications
Product properties
| Housing type | Component housing |
| Product family | EMG...-LG/SET |
| Type | Lower housing part, removable cover as option, connection system integrated |
| Number of Positions | 38 |
| Pitch | 5 mm |
| Type | Lower and upper part, with snap-on foot, including PCB terminal blocks |
Dimensions
| Width | 100 mm |
| Installed height | 47.5 mm |
| Height NS 35/7,5 | 55 mm |
| Height NS 35/7,5 | 83 mm |
| Height NS 35/7,5 | 100 mm |
| Depth | 75 mm |
| Length | 75 mm |
| Pitch | 5 mm |
Material specifications
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polycarbonate fiber reinforced |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Mounting
| Mounting Type | DIN rail mounting |
Why Proax for Phoenix Contact 2906283?
Proax is an authorized distributor of Phoenix Contact 2906283 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
