2914576
Official DistributorSKU
PHX2914576
MPN
UM122-PROFIL 100CM
Weight
0.3 kg
Series UM122-PROFIL

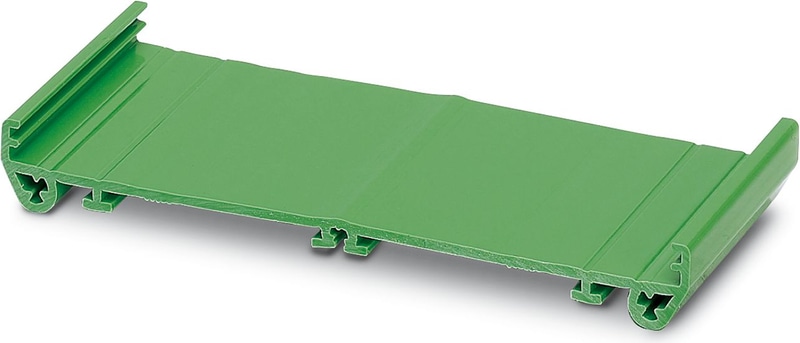

UM122-PROFIL 100CM - Profile
Press-drawn section housings, Basic profile, profile width (internal): 122 mm, profile width (external): 127.5 mm, length: 1000 mm, Note: required profile length = PCB length - 9.5 mm
Technical Specifications
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM Profil |
| Type | Basic profile |
| Ventilation openings present | no |
Dimensions
| Length | 1 m |
External dimensions
| Profile width (external) | 127.5 mm |
Internal dimensions
| Profile width (internal) | 122 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PVC |
Ambient conditions
| Ambient Temperature (Operation) | -15 °C ... 50 °C |
Why Proax for Phoenix Contact 2914576?
Proax is an authorized distributor of Phoenix Contact 2914576 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
