2909057
Official DistributorSKU
PHX2909057
MPN
UM122-SEFE/L KMGY
Weight
0.009 kg

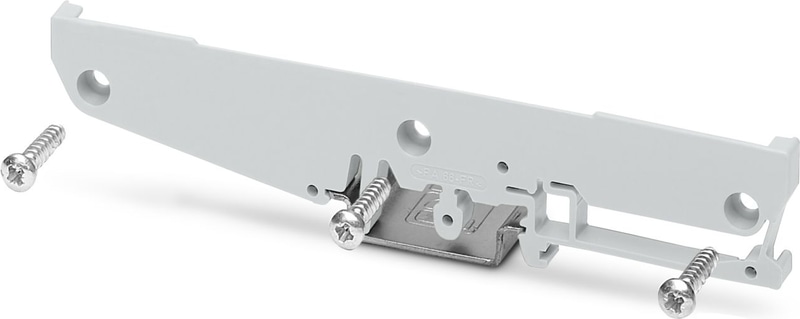

UM122-SEFE/L KMGY - Lateral element
Side element, left, with foot, width: 5 mm, length: 122 mm, for mounting on DIN rail NS 32 or NS 35/7.5
Technical Specifications
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM122 |
| Type | Lateral element (left) |
| Ventilation openings present | no |
Dimensions
| Width | 6.45 mm |
| Height | 127.5 mm |
| Depth | 27.1 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
Mounting
| Mounting Type | DIN rail mounting |
Why Proax for Phoenix Contact 2909057?
Proax is an authorized distributor of Phoenix Contact 2909057 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
