2907570
Official DistributorSKU
PHX2907570
MPN
EMG100-LG/MSTB
Weight
0.08 kg

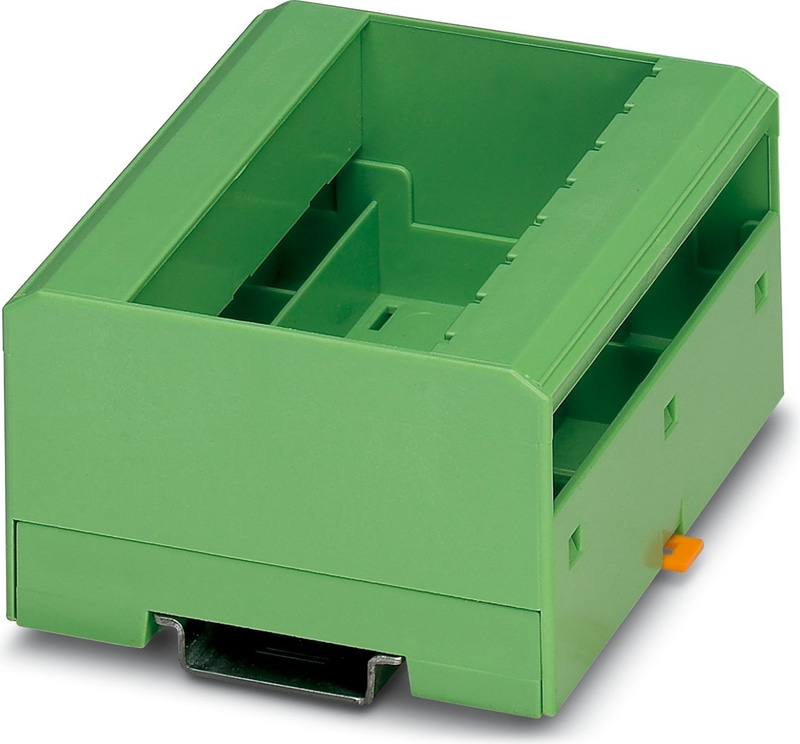

EMG100-LG/MSTB - Electronics housing
Electronic housing, for PCB insertion, without screw connection terminal blocks and cover, with lateral opening for connector
Technical Specifications
Product properties
| Housing type | Component housing |
| Housing series | EMG |
| Product family | EMG...-LG |
| Type | Lower part of housing, removable cover optional |
| Type | Lower and upper part with snap-on foot, with lateral opening for connectors |
Dimensions
| Width | 100 mm |
| Installed height | 47.5 mm |
| Height NS 35/7,5 | 55 mm |
| Height NS 35/7,5 | 83 mm |
| Height NS 35/7,5 | 100 mm |
| Depth | 75 mm |
| Length | 75 mm |
Material specifications
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polycarbonate, glass-fiber-reinforced |
| Surface characteristics | untreated |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Mounting
| Mounting Type | DIN rail mounting |
Why Proax for Phoenix Contact 2907570?
Proax is an authorized distributor of Phoenix Contact 2907570 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
