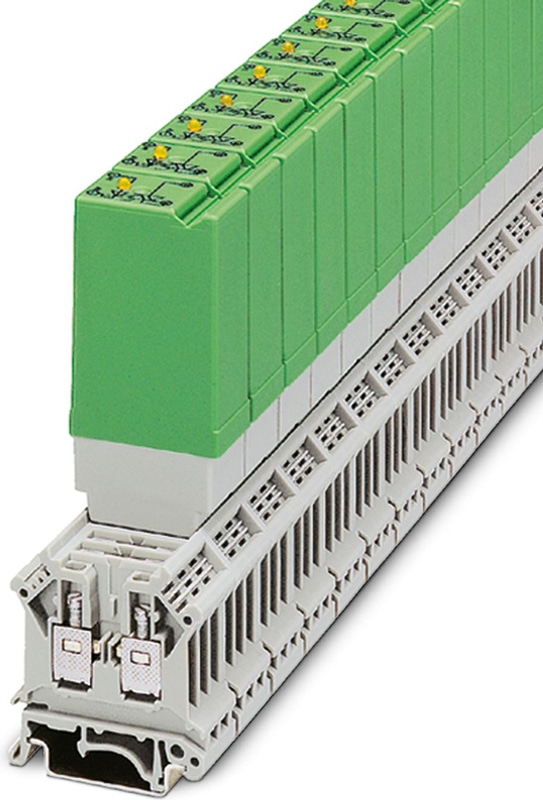

The figure shows version ST-OV 3- 5 DC/240 AC/3
2905417
Official DistributorSKU
PHX2905417
MPN
ST-OV3- 24DC/400AC/3
Weight
0.062 kg
This product is Not Cancellable/Not Returnable
Series ST-OV
ST-OV3- 24DC/400AC/3 - Solid-state relay
Plug-in power solid-state relay, input: 24 V DC, output: 24 - 420 V AC/max. 3 A
- Pluggable
- Control of 230 V motors in simple reversing mode (e.g., synchronous motor in single-phase mode, see illustration)
- Switching of up to 400 V AC/3 A
Technical Specifications
Insulation characteristics
| Insulation | Basic insulation |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Maximum power dissipation for nominal condition | 0.17 W |
| Test voltage (Input/output) | 2.5 kV AC (Input/output) |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Input voltage range | 21.6 V DC ... 26.4 V DC |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 7 mA |
| Operating voltage display | Yellow LED |
| Protective circuit | Reverse polarity protection |
| Protective circuit | RC element; RC element |
| Transmission frequency | 10 Hz |
Output data
| Design of digital output | electronic |
| Output nominal voltage | 400 V AC |
| Output voltage range | 24 V AC ... 420 V AC |
| Limiting Continuous Current | 3 A (see derating curve) |
| Maximum Inrush Current | 125 A (t = 10 ms) |
| Min. load current | 50 mA |
| Leakage current | approx. 12 mA |
| Surge current | 125 A (t = 10 ms) |
| Peak offstate voltage | 800 V (Periodic peak reverse voltage) |
| Voltage drop at max. limiting continuous current | ≤ 1.2 V |
| Protective circuit | Surge protection; Varistor |
| Protective circuit | RC element; RC element |
Dimensions
| Width | 20.8 mm |
| Height | 42.5 mm |
| Depth | 112 mm |
Material specifications
| Color | green (RAL 6021) |
Ambient conditions
| Ambient Temperature (Operation) | 0 °C ... 60 °C |
| Ambient temperature (storage/transport) | 0 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | EN 50178 |
Mounting
| Mounting Position | Horizontal DIN rail |
