ST-OV3- 60DC/ 24DC/2 - Solid-state relay

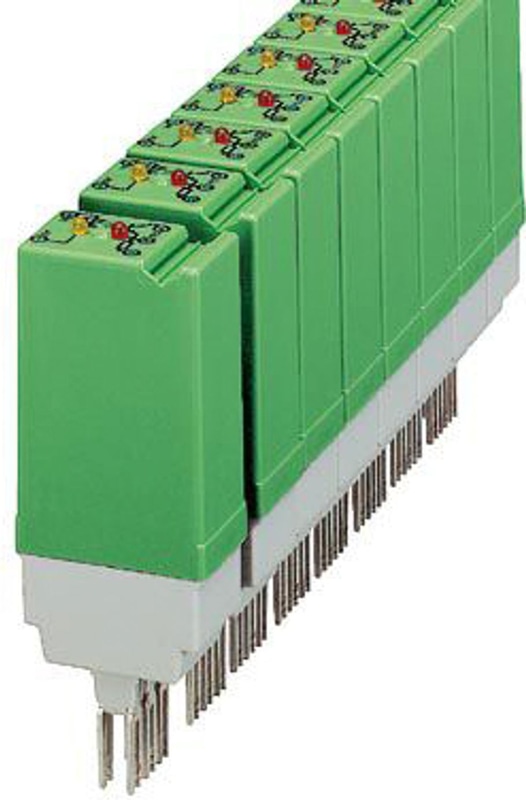

Plug-in power solid-state relay, with LED and protective circuit in input and output circuits, input: 48 - 60 V DC, output: short-circuit-proof, 10 - 30 V DC/max. 2 A, can be plugged into basic terminal blocks
Technical Specifications
Electrical properties
| Test voltage (Input/output) | 2.5 kV AC (Input/output) |
Input data
| Nominal input voltage UN | 60 V DC |
| Input voltage range in reference to UN | 0.64 ... 1.2 |
| Input voltage range | 38.4 V DC ... 72 V DC |
| Switching threshold "0" signal, voltage | ≤ 13.5 V |
| Switching threshold "1" signal voltage | ≥ 15 V |
| Typical input current at UN | 5 mA |
| Typical response time | 17 µs |
| Typical turn-off time | 104 µs |
| Status display | Yellow LED |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Protective circuit | Surge protection |
| Transmission frequency | 1000 Hz |
Output data
| Design of digital output | electronic |
| Output voltage range | 10 V DC ... 30 V DC |
| Limiting Continuous Current | 2 A (see derating curve) |
| Peak offstate voltage | 35 V DC (Collector-emitter reverse voltage) |
| Voltage drop at max. limiting continuous current | 1.5 V |
| Output circuit | 3-conductor, ground-referenced |
| Status display | LED red |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Protective circuit | Free running; Freewheeling diode |
Dimensions
| Width | 20.8 mm |
| Height | 33 mm |
| Depth | 66.5 mm |
Material specifications
| Color | green (RAL 6021) |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | DIN VDE 0110 |
Mounting
| Mounting Position | any |
