Name: 3214016
Brand: Phoenix Contact
SKU: PHX3214016

Official Distributor

By Phoenix Contact

SKU

MPN

PTU 16/14X2,5 GY

Weight

0.041 kg

Series PTU

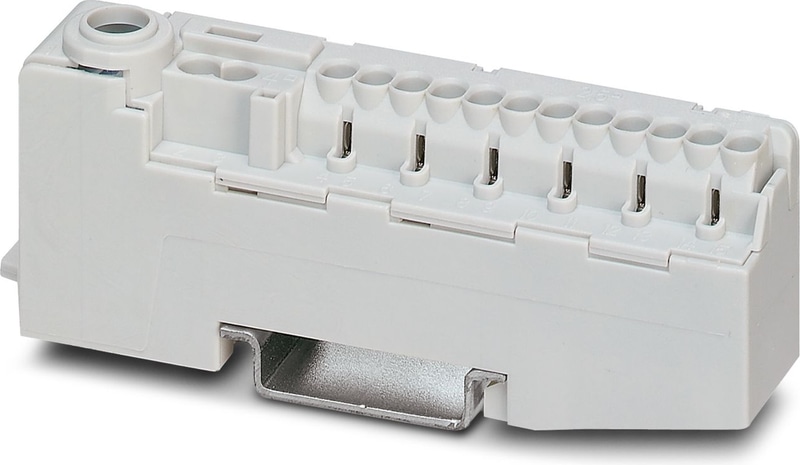

PTU 16/14X2,5 GY - Potential collective terminal

Potential collective terminal, nom. voltage: 1000 V, nominal current: 25 A, number of connections: 15, connection method: Push-in connection, First level connection, interior, Rated cross section: 2.5 mm2, cross section: 1 mm2 - 2.5 mm2, Screw connection, 1st level connection left, Rated cross section: 16 mm2, cross section: 1.5 mm2 - 25 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

The terminal block base is ideal for use in building installation and machine building applications
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off

Product properties

Number of Connections	15
Number of rows	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	2

Electrical properties

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	2.43 W

Connection data

Number of connections per level

First level connection, interior

Internal cylindrical gage	A3
Connection in acc. with standard	VDE 0609, Part 1/EN 60999-1
Conductor cross section rigid	1 mm² ... 2.5 mm²
Cross section AWG	18 ... 14 (converted acc. to IEC)
Conductor cross section flexible	1 mm² ... 2.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.75 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.75 mm² ... 1.5 mm²
Nominal Current	25 A (The sum of the individual currents may not exceed the max. value of 80 A)
Maximum Load Current	25 A (The sum of the individual currents may not exceed the max. value of 80 A)
Nominal Voltage	1000 V
Nominal cross section	2.5 mm²

1st level connection left

Screw thread	M5
Tightening torque	2 ... 3 Nm
Stripping length	12 mm
Internal cylindrical gage	A7
Connection in acc. with standard	VDE 0609, Part 1/EN 60999-1
Conductor cross section rigid	1.5 mm² ... 25 mm²
Cross section AWG	16 ... 4 (converted acc. to IEC)
Conductor cross section flexible	1 mm² ... 16 mm²
Conductor cross section, flexible [AWG]	18 ... 6 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	1 mm² ... 16 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	1 mm² ... 16 mm²
2 conductors with same cross section, solid	1.5 mm² ... 10 mm²
2 conductors with same cross section, flexible	1.5 mm² ... 6 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	1.5 mm² ... 6 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	1.5 mm² ... 6 mm²
Nominal Current	80 A (with 16 mm² conductor cross section)
Maximum Load Current	80 A (with 25 mm² conductor cross section)
Nominal Voltage	1000 V
Nominal cross section	16 mm²

Dimensions

Width	17.5 mm
Height	89.5 mm
Depth on NS 35/7,5	36 mm
Depth on NS 35/15	43.5 mm

Material specifications

Color	gray
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA

Mechanical data

Open side panel

Ambient conditions

Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C ()
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard	VDE 0609, Part 1/EN 60999-1
Connection in acc. with standard	VDE 0609, Part 1/EN 60999-1

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15
