Name: 3214014
Brand: Phoenix Contact
SKU: PHX3214014

Official Distributor

By Phoenix Contact

SKU

MPN

PTU 16/14X2,5 BU

Weight

0.041 kg

Series PTU

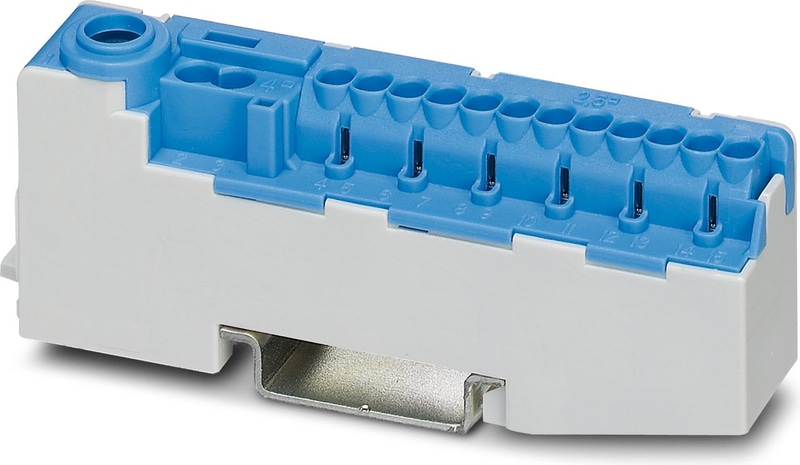

PTU 16/14X2,5 BU - Potential collective terminal

Potential collective terminal, nom. voltage: 1000 V, nominal current: 25 A, number of connections: 15, connection method: Push-in connection, First level connection, interior, Rated cross section: 2.5 mm2, cross section: 1 mm2 - 2.5 mm2, Screw connection, 1st level connection left, Rated cross section: 16 mm2, cross section: 1.5 mm2 - 25 mm2, mounting type: NS 35/7,5, NS 35/15, color: blue

The terminal block base is ideal for use in building installation and machine building applications
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space

Product properties

Number of Connections	15
Number of rows	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	2

Electrical properties

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	2.43 W

Connection data

Type of additional hybrid connection	UT 2,5
Number of connections per level	15

First level connection, interior

Internal cylindrical gage	A3
Connection in acc. with standard	VDE 0609, Part 1/EN 60999-1
Conductor cross section rigid	1 mm² ... 2.5 mm²
Cross section AWG	18 ... 14 (converted acc. to IEC)
Conductor cross section flexible	1 mm² ... 2.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.75 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.75 mm² ... 1.5 mm²
Nominal Current	25 A (The sum of the individual currents may not exceed the max. value of 80 A)
Maximum Load Current	25 A (The sum of the individual currents may not exceed the max. value of 80 A)
Nominal Voltage	1000 V
Nominal cross section	2.5 mm²

1st level connection left

Screw thread	M5
Tightening torque	2 ... 3 Nm
Stripping length	12 mm
Internal cylindrical gage	A7
Connection in acc. with standard	VDE 0609, Part 1/EN 60999-1
Conductor cross section rigid	1.5 mm² ... 25 mm²
Cross section AWG	16 ... 4 (converted acc. to IEC)
Conductor cross section flexible	1 mm² ... 16 mm²
Conductor cross section, flexible [AWG]	18 ... 6 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	1 mm² ... 16 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	1 mm² ... 16 mm²
2 conductors with same cross section, solid	1.5 mm² ... 10 mm²
2 conductors with same cross section, flexible	1.5 mm² ... 6 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	1.5 mm² ... 6 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	1.5 mm² ... 6 mm²
Nominal Current	80 A (with 16 mm² conductor cross section)
Maximum Load Current	80 A (with 25 mm² conductor cross section)
Nominal Voltage	1000 V
Nominal cross section	16 mm²

Dimensions

Width	17.5 mm
Height	89.5 mm
Depth on NS 35/7,5	36 mm
Depth on NS 35/15	43.5 mm

Material specifications

Color	blue
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA

Mechanical data

Open side panel

Ambient conditions

Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C ()
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard	VDE 0609, Part 1/EN 60999-1
Connection in acc. with standard	VDE 0609, Part 1/EN 60999-1

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15
