2906003
Official DistributorSKU
PHX2906003
MPN
TC-C-PCX3-SC-A100V+A20000
Weight
0.014 kg

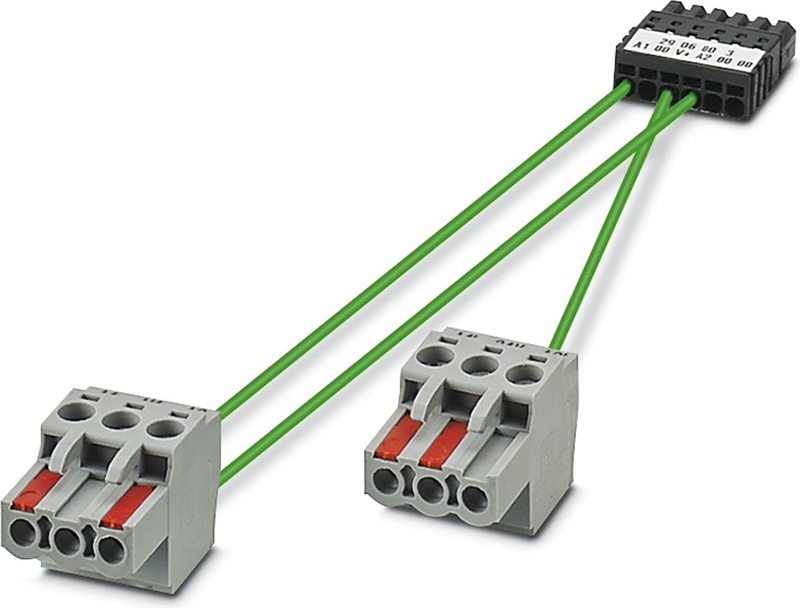

TC-C-PCX3-SC-A100V+A20000 - Cable set
Cable set for signal transmission and power supply on the Termination Carrier for PSR-PC50-1NO-1DO-24DC-SC (Item No. 2904664). Connection of terminal points A1 and A2 (signal transmission) as well as V+ (power supply) to the signal PCB.
Technical Specifications
Notes
| Order information: | Cable set suitable for PSR-PC50 (Order No.: 2904664) with 24 V power supply. |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2906003?
Proax is an authorized distributor of Phoenix Contact 2906003 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 16 |
