2902945
Official DistributorSKU
PHX2902945
MPN
TC-C-PTB1-SC-05060708
Weight
0.333 kg
Series TC-C-PTB

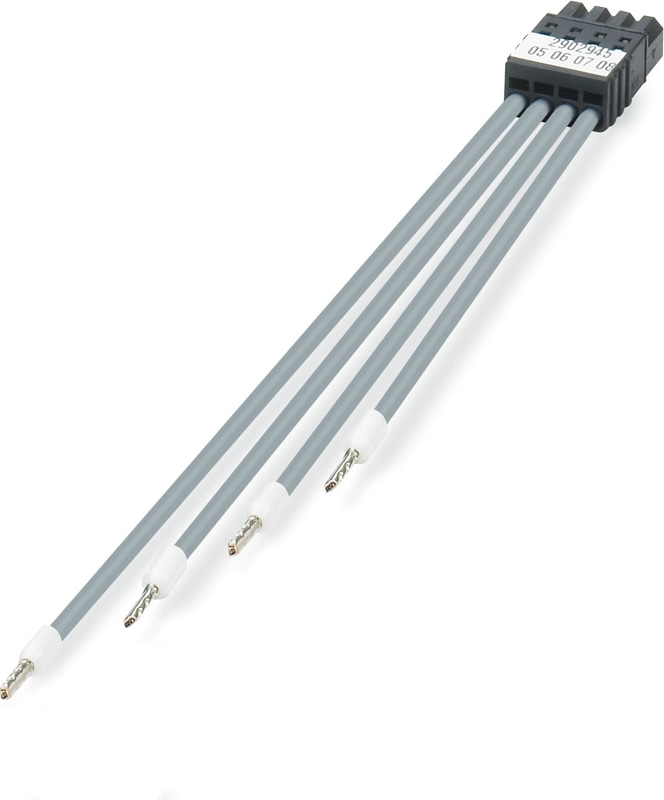

TC-C-PTB1-SC-05060708 - Cable set
Supply voltage cable set for redundant supply in a device topology on the MINI Analog termination carrier. This cable set is suitable for supply using the 2902958 MINI MCR-SL-PTB-FM power terminal block.
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2902945?
Proax is an authorized distributor of Phoenix Contact 2902945 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 2 |
