1059740
Official DistributorSKU
PHX1059740
MPN
TC-C-PSR3-SC-A1A2240V2122
Weight
0.014 kg
Series TC-C-PSR3

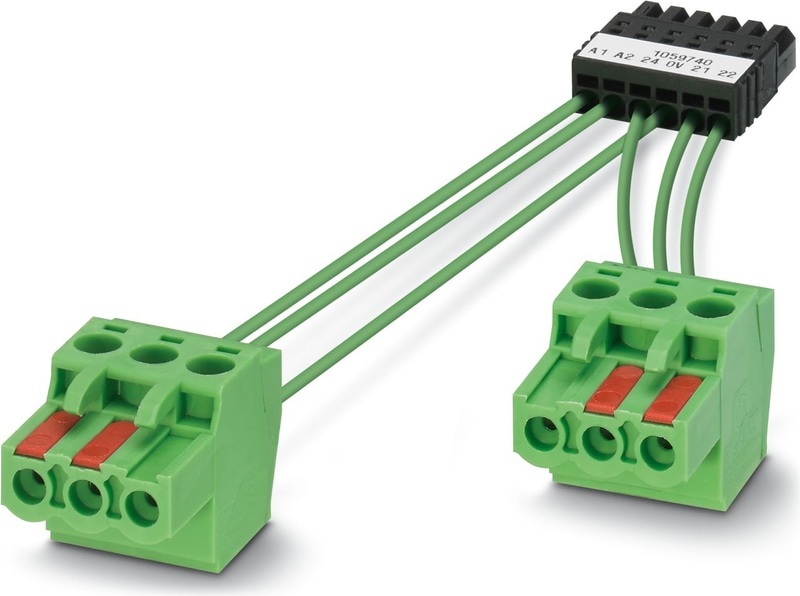

TC-C-PSR3-SC-A1A2240V2122 - Cable set
Cable set for signal transmission on the Termination Carrier for coupling relays from the PSR-PC series. Suitable for PSR-PC51-1NO-1NC-24DC-SC (Item No. 2702522) and PSR-PC52-1NO-1NC-24DC-SC (Item No. 1017062).
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 1059740?
Proax is an authorized distributor of Phoenix Contact 1059740 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 16 |
