2904674
Official DistributorSKU
PHX2904674
MPN
TC-C-MAX2-SC-31322122
Weight
0.01 kg
Series TC-C-MAX2

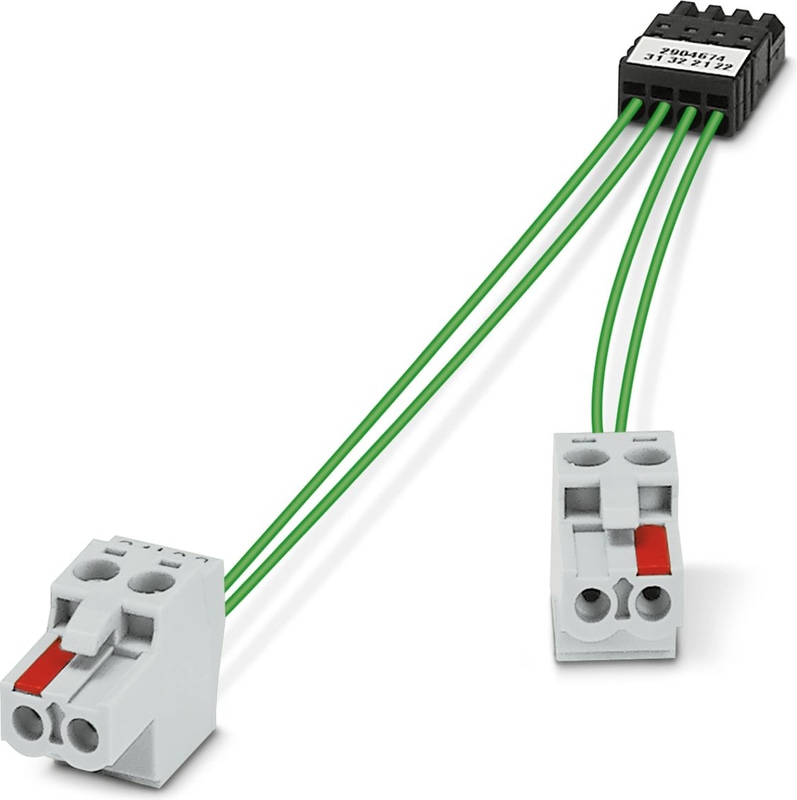

TC-C-MAX2-SC-31322122 - Cable set
Cable set for signal transmission on the Termination Carrier for two-channel modules or modules with double output from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 as well as 2.1 and 2.2 (signal transmission) to the signal PCB.
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2904674?
Proax is an authorized distributor of Phoenix Contact 2904674 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 8 |
Recommended
TC-C-MAX2-SC-313221221112 - Cable set for signal transmission and power supply on the Termination Carrier for signal conditioners from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2, as well as 2.1 and 2.2 (signal transmission) and 1.1 and 1.2 (power supply) to the signal PCB.
TC-C-MAX2-SC-31321112 - Cable set for signal transmission and power supply on the Termination Carrier for modules from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 (signal transmission) as well as 1.1 and 1.2 (power supply) to the signal PCB via a 4-pos. PTSM connector.
TC-C-MAX2-SC-31320000 - Cable set for signal transmission on the Termination Carrier for modules from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 (signal transmission) to the signal PCB.
TC-C-MAX2-SC-32221112 - Cable set for signal transmission and power supply on the Termination Carrier for signal conditioners from the MACX Analog Ex series. Connection of terminal points 3.2 and 2.2 (signal transmission for active input cards) as well as 1.1 and 1.2 (power supply) to the signal PCB.
TC-C-MAX2-SC-32220000 - Cable set for signal transmission and power supply on the Termination Carrier for signal conditioners from the MACX Analog Ex series. Connection of terminal points 3.2 and 2.2 (signal transmission for active input cards) to the signal PCB.
TC-C-MAX2-SC-21220000 - Cable set for signal transmission on the Termination Carrier for modules from the MACX Analog Ex series. Connection of terminal points 2.1 and 2.2 (signal transmission) to the signal PCB.
TC-C-MINI-AI-05060708 - Cable set for signal transmission and power supply on the Termination Carrier for modules from the MINI Analog and PSR mini series. Connection of terminal points 5 and 6 (signal transmission) as well as 7 and 8 (power supply) to the signal PCB.
TC-C-PCX3-SC-A100V+A20000 - Cable set for signal transmission and power supply on the Termination Carrier for PSR-PC50-1NO-1DO-24DC-SC (Item No. 2904664). Connection of terminal points A1 and A2 (signal transmission) as well as V+ (power supply) to the signal PCB.
TC-C-PSR3-SC-A10000A20000 - Cable set for signal transmission on the Termination Carrier for coupling relays from the PSR-FSP series. Connection of terminal points A1 and A2 (signal transmission) to the signal PCB. Suitable for PSR-SCP-24DC/FSP/1X1/1X2 (Item No. 2981978).
TC-C-PSR3-SC-A10000A23132 - Cable set for signal transmission on the Termination Carrier for coupling relays from the PSR-FSP series. Connection of terminal points A1 and A2 (signal transmission) as well as 31 and 32 (confirmation). Suitable for PSR-SCP-24DC/FSP/2X1/1X2 (Item No. 2986960) and PSR-SCP-24DC/FSP2/2X1/1X2 (Item No. 2986575).
TC-C-PSR3-SC-A100V+A20000 - Cable set for signal transmission and power supply on the Termination Carrier for coupling relays from the PSR-ETP series. Connection of terminal points A1 and A2 (signal transmission) as well as V+ (power supply) to the signal PCB. Suitable for PSR-SCP-24DC/ETP/1X1 (Item No. 2986711).
TC-C-PSR3-SC-A1A2240V2122 - Cable set for signal transmission on the Termination Carrier for coupling relays from the PSR-PC series. Suitable for PSR-PC51-1NO-1NC-24DC-SC (Item No. 2702522) and PSR-PC52-1NO-1NC-24DC-SC (Item No. 1017062).
