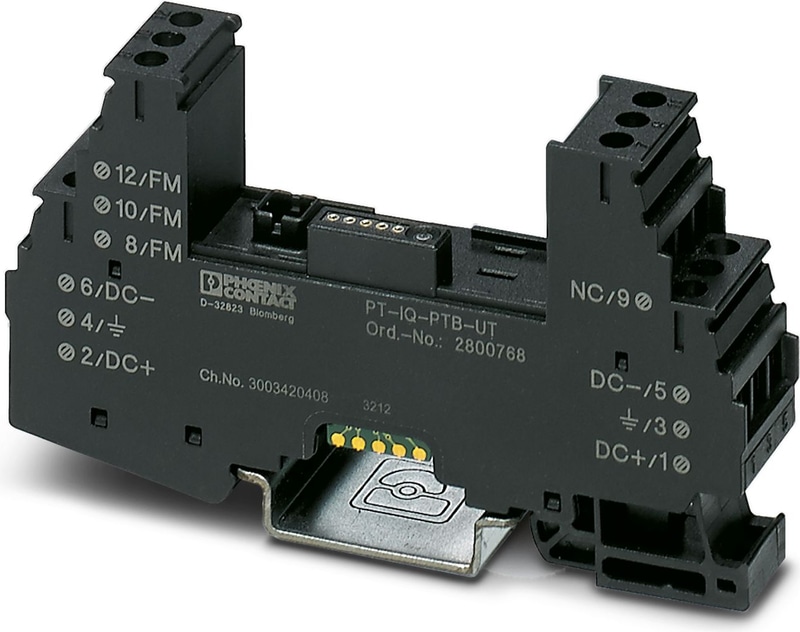

PT-IQ-PTB-BE-UT - Surge protection base-element
Base element for the PLUGTRAB PT-IQ-PTB... supply and remote signaling module
Technical Specifications
Product properties
| Product family | PLUGTRAB IQ |
| Type | Base element, DIN rail mounting |
| Number of Positions | 1 |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Supply: Status indicator/remote signaling
| Operating Voltage | 20 V DC ... 30 V DC |
| Rated current | max. 130 mA (24 V DC) |
| Rated current | max. 160 mA (20 V DC) |
| Max. required back-up fuse | 500 mA (T) |
| Number of surge protection modules that can be mounted side by side | 28 (32 °C) |
Connection data
| Connection Method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Ex data
| Altitude | ≤ 2000 m (amsl) |
| Ambient Temperature (Operation) | -40 °C ... 50 °C (T6) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (T4) |
| Number of surge protection modules that can be mounted side by side | max. 10 |
| Operating Voltage | 20 V DC ... 30 V DC |
| max. input voltage Um | 35 V DC |
| Maximum switching voltage Um | 60 V DC |
Dimensions
| Width | 17.7 mm |
| Height | 91.1 mm |
| Depth | 51.5 mm (incl. DIN rail 7.5 mm) |
| Horizontal pitch | 1 Div. |
Material specifications
| Color | black (RAL 9005) |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA 6.6 |
Mechanical data
| Open side panel | No |
Protective circuit
| Surge protection fault message | Remote indication contact |
| Max. required back-up fuse | 500 mA (F) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
Standards and Regulations
| Standards/specifications | EN 61000-6-2 |
| Note | 2005 |
| Standards/specifications | EN 61000-6-3 |
| Note | 2007 + A1:2011 |
| Standards/specifications | EN 60950-1 |
| Note | 2006 + A1:2010 |
| Standards/specifications | EN 60079-0 |
| Note | 2018 |
| Standards/specifications | EN 60079-11 |
| Note | 2012 |
| Standards/specifications | EN 60079-15 |
| Note | 2010 |
| Standards/specifications | IEC 60079-0 |
| Note | 2017 |
| Standards/specifications | IEC 60079-11 |
| Note | 2011 |
| Standards/specifications | IEC 60079-15 |
| Note | 2010 |
Mounting
| Mounting Type | DIN rail: 35 mm |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
FK-MC 0,5/ 5-ST-2,5 - PCB connector, nominal cross section: 0.5 mm2, color: green, nominal current: 4 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Socket, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: FK-MC 0,5/..-ST, pitch: 2.5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON FK-MC 0,5, locking: without, mounting: without, type of packaging: packed in cardboard
