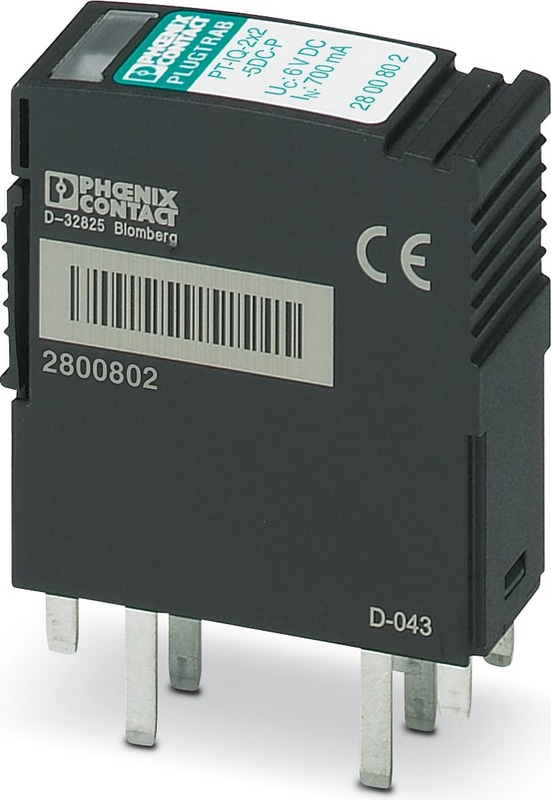

PT-IQ-2X2-5DC-P - Surge protection plug
Surge protection plug with integrated multi-stage status indicator on the module for two 2-wire floating signal circuits. Nominal voltage: 5 V DC
- Predictive monitoring with 3-stage LED display
- Integration of the status message into the system controller via group remote signaling
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
- Maximum ease of maintenance, thanks to the 2-piece design
- Maximum protection for MCR applications with high discharge capacity
Technical Specifications
General
| Note | Remote signaling as well as the power supply are established by inserting the connector into the base element. |
Product properties
| Product family | PLUGTRAB IQ |
| Type | Male |
| Surge protection fault message | Optical, multi-stage |
| Wire pairs per module | 1 |
Electrical properties
| Nominal voltage UN | 5 V DC |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 17.7 mm |
| Height | 45 mm |
| Depth | 53.4 mm |
| Horizontal pitch | 1 Div. |
| Complete module width | 17.7 mm |
| Complete module height | 91.1 mm |
| Complete module depth | 77.5 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA 6.6 |
Protective circuit
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
| Maximum continuous voltage UC | 6 V DC |
| Maximum continuous voltage UC | 4 V AC |
| Rated current | 700 mA (50 °C) |
| Surge protection fault message | Optical, multi-stage |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
Mounting
| Mounting Type | on base element |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
