2905023
Official DistributorSKU
PHX2905023
MPN
PT-IQ-EX-L-PP
Weight
0.025 kg

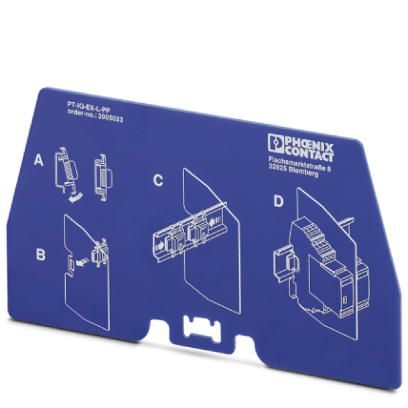

PT-IQ-EX-L-PP - Separating plate
Partition plate for NS-35/7,5 DIN rails to ensure a clearance of 50 mm between the controller and surge protection for PT-IQ-EX systems.
Technical Specifications
Dimensions
| Height | 138.7 mm |
| Width | 1 mm |
| Depth | 77.2 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
General
| Housing Material | FR 4-21 |
| Flammability rating according to UL 94 | V-0 |
| Color | blue |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 2905023?
Proax is an authorized distributor of Phoenix Contact 2905023 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
