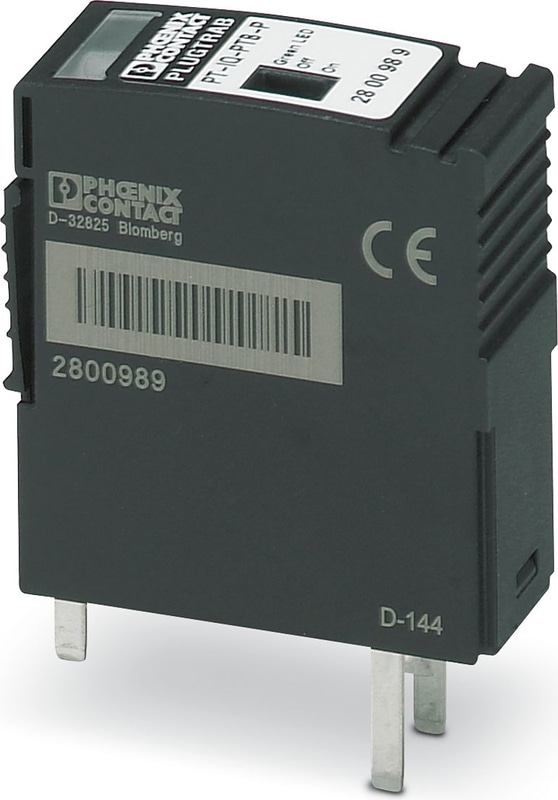

PT-IQ-PTB-P - Plug
Replacement plug for the PLUGTRAB PT-IQ-PTB... supply and remote signaling module
- Predictive monitoring with 3-stage LED display
- Integration of the status message into the system controller via group remote signaling
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
- Maximum ease of maintenance, thanks to the 2-piece design
- Maximum protection for MCR applications with high discharge capacity
Technical Specifications
Notes
| General | This product is a replacement plug. |
Product properties
| Product family | PLUGTRAB IQ |
| Type | Male |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 24 V DC |
Supply: Status indicator/remote signaling
| Operating Voltage | 20 V DC ... 30 V DC |
| Rated current | max. 130 mA (24 V DC) |
| Rated current | max. 160 mA (20 V DC) |
| Max. required back-up fuse | 500 mA (T) |
| Number of surge protection modules that can be mounted side by side | 28 (32 °C) |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 17.7 mm |
| Height | 45 mm |
| Depth | 53.4 mm |
| Horizontal pitch | 1 Div. |
Material specifications
| Color | black (RAL 9005) |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA 6.6 |
Protective circuit
| Surge protection fault message | Optical, multi-stage |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
Standards and Regulations
| Standards/specifications | EN 61000-6-2 |
| Note | 2005 |
| Standards/specifications | EN 61000-6-3 |
| Note | 2007 + A1:2011 |
| Standards/specifications | EN 60950-1 |
| Note | 2006 + A1:2010 |
| Standards/specifications | EN 60079-0 |
| Note | 2018 |
| Standards/specifications | EN 60079-11 |
| Note | 2012 |
| Standards/specifications | EN 60079-15 |
| Note | 2010 |
| Standards/specifications | IEC 60079-0 |
| Note | 2017 |
| Standards/specifications | IEC 60079-11 |
| Note | 2011 |
| Standards/specifications | IEC 60079-15 |
| Note | 2010 |
Mounting
| Mounting Type | on base element |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
