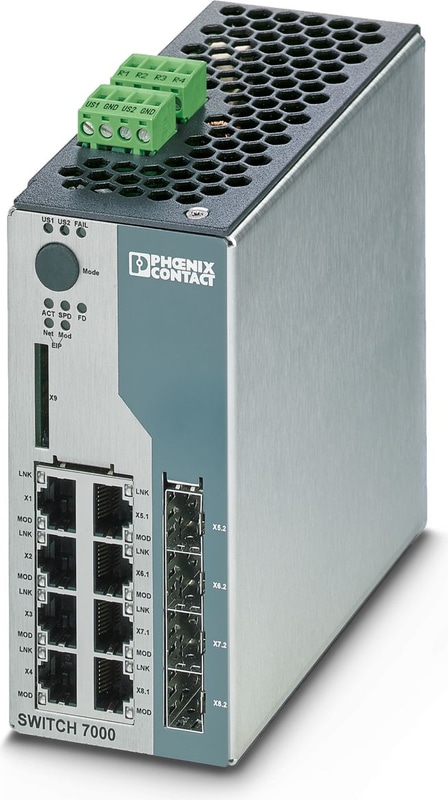

FL SWITCH 7004-2TC-2GC-EIP
Weight
1.144 kg
This product is Not Cancellable/Not Returnable
Series FL-SWITCH
FL SWITCH 7004-2TC-2GC-EIP - Industrial Ethernet Switch
Managed Switch 7000, 4 RJ45 ports 10/100 Mbps, 2 Combo ports 10/100/1000 Mbps, 2 Combo ports 10/100 Mbps, PROFINET Conformance-Class A, EtherNet/IP™
- Ambient temperature -40 °C ... 70 °C
- RSTP with fast switch-over
- VLANs
- Common Industrial Protocol (CIP)
- Device Level Ring (DLR)
- DHCP client, DHCP server (pool-based and port-based), DHCP option 82
- Web-based management, SNMP
- Slim design
FL-SWITCH
Phoenix Contact FL SWITCH Series - Industrial Ethernet switches for automation and control systems.
Unmanaged Switches (plug-and-play):
- 1000/1100 Series: Compact design, 10/100 Mbps (1000) or up to 1 Gbps (1100), supports PROFINET/EtherNet/IP
- 1600/1700 Series: Environmental resistance for harsh field conditions
- 1800/1900 Series: High port density (up to 24 ports) for data centers/control rooms
Managed Switches (advanced features):
- 2000 Series: Cost-effective, Fast/Gigabit Ethernet, redundancy (RSTP/MRP), multicast filtering
- 3000/4000 Series: Advanced diagnostics and security, 15ms failover, up to 64 VLANs, IEEE 802.1x authentication, PoE options (60W per port)
Designed for reliable industrial network connectivity with appropriate features for different application requirements.
Technical Specifications
Dimensions
| Width | 60 mm |
| Height | 130 mm |
| Depth | 135.5 mm |
Mounting
| Mounting Type | DIN rail mounting |
Ethernet (RJ45)
| Connection Method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Data receive, link status |
| No. of channels | 4 (RJ45 ports) |
Ethernet (combo)
| Connection Method | SFP/RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100/1000 Mbps (full duplex) |
| Transmission physics | Depending on the SFP module |
| Transmission length | up to 80 km (Depending on the fiber/SFP module used) |
| Signal LEDs | Data receive, link status |
| No. of channels | 2 (Combo ports) |
| Connection Method | SFP/RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100 Mbps (full duplex) |
| Transmission physics | Depending on the SFP module |
| Transmission length | up to 40 km (Depending on the fiber/SFP module used) |
| Signal LEDs | Data receive, link status |
| No. of channels | 2 (Combo ports) |
Product properties
| Product family | Managed Switch 7000 |
| Type | Book type |
| MTTF | 138.85 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| MTTF | 83.9 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) |
| MTTF | 14.59 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) |
| Special Properties | EtherNet/IP™ |
Insulation characteristics
| Protection class | III (VDE 0106, IEC 60536) |
Switch functions
| Diagnostic functions | Remanente Event-Table |
| Diagnostic functions | RMON History |
| Diagnostic functions | N:1-Portmirroring |
| Diagnostic functions | LLDP (Link Layer Discovery Protocol) |
| Diagnostic functions | SNMP-Traps |
| Diagnostic functions | ACD (Address Conflict Detection) |
| EtherNet/IP™ supported protocols | Common Industrial Protocol (CIP) |
| Basic Functions | Store-and-forward switch, complies with IEEE 802.3 |
| Signal contact control voltage | 24 V DC (typical) |
| Signal contact control current | 1 A (maximum) |
| PROFINET conformance class | Conformance-Class A |
| PROFINET device function | Fast Startup |
| Filter functions | Quality of Service (8 priority classes) |
| Filter functions | Port-Priorisierung |
| Filter functions | VLAN (up to 32 VLANs) |
| Filter functions | IGMP Snooping/Querier (v1/v2) |
| Filter functions | Auto-Query-Port |
| Filter functions | Extended Multicast Filtering |
| Filter functions | Static Multicast Filtering (32 groups) |
| Filter functions | Link Aggregation (up to 4 trunks) |
| IP parameterization | DHCP-Client |
| IP parameterization | DHCP Option 82 (Relay Agent) |
| IP parameterization | DHCP server (pool-based, port-based) |
| IP parameterization | BootP |
| MAC address table | 16k |
| Management | Web-based management (HTTP/HTTPS) |
| Management | SNMPv1/v2/v3 |
| Redundancy | DLR (Device Level Ring) |
| Redundancy | RSTP (Rapid Spanning Tree Protocol) |
| Redundancy | FRD (Fast Ring Detection) |
| Redundancy | Large Tree Support |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) EtherNet/IP™ status LED: Net, Mod |
| Additional functions | MAC-based Port-Security |
| Time synchronization | PTP 1588 (Transparent clock on the DLR ports) |
Security functions
| Basic Functions | Store-and-forward switch, complies with IEEE 802.3 |
Electrical properties
| Power consumption | 13.44 W |
| Local diagnostics | US1/2 Supply voltage US1, US2 Green LED |
| Local diagnostics | FAIL Div. LED red |
| Local diagnostics | LINK Link status LED |
| Maximum power dissipation for nominal condition | 13.44 W |
| Test voltage | 500 V DC |
| Test section | for one minute 500 V DC |
| Transmission medium | Copper |
| Transmission medium | FO |
Supply
| Supply voltage (DC) | 24 V DC (redundant) |
| Supply Voltage Range | 12 V DC ... 58 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Typical current consumption | 560 mA (at US = 24 V DC) |
| Current consumption | 560 mA |
Function
| Signal contact control voltage | 24 V DC (typical) |
| Signal contact control current | 1 A (maximum) |
Connection data
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 7 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Standards and Regulations
| Free from substances that could impair the application of coating | Yes |
Conformity/Approvals
| Noxious gas test | ISA S71.04.2013 G3 Harsh Group A |
EMC data
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion A |
| Conformance with EMC directives | IEC 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A |
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion A |
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion A |
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Noise emission | EN 61000-6-4 |
Functionality
| Basic Functions | Store-and-forward switch, complies with IEEE 802.3 |
Signaling
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) EtherNet/IP™ status LED: Net, Mod |
Accessories
SD FLASH 2GB - Program and configuration memory, for extending the internal flash memory, pluggable, 2 GB.
FL NETWORK MANAGER BASIC - SNMP-based software for easy commissioning and monitoring of network components such as switches, routers, and WLAN access points
FL SNMP OPC SERVER V3 - SNMP-OPC server, German and English, for monitoring and configuration of SNMP-capable equipment in HMI and SCADA systems
NBC-R4AC/10G-R4AC/10G-94F/2,0 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 2.0 m- NBC-R4AC/10G-R4AC/10G-94F/3,0 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 3.0 m
NBC-R4AC/1,0-93B/R4AC - Patch cable, degree of protection: IP20, cable length: 1 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET- NBC-R4AC/2,0-93B/R4AC - Patch cable, degree of protection: IP20, cable length: 2 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
- Patch cable, degree of protection: IP20, cable length: 5 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
