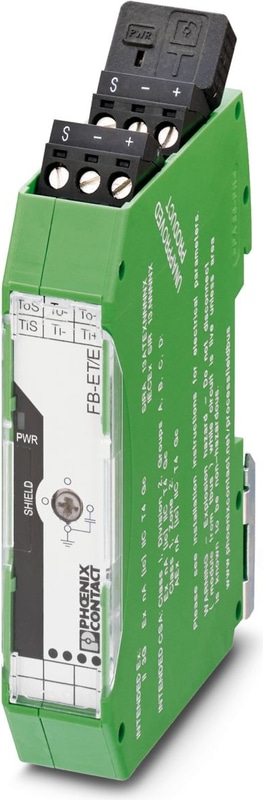

FB-ET/E - Trunk module
Trunk module for Foundation Fieldbus and PROFIBUS PA modular device couplers with terminator
Technical Specifications
Utilization restriction
| CCCex note | Use in potentially explosive areas is not permitted in China. |
Supply
| Supply Voltage Range | 10.5 V DC ... 32 V DC (input on trunk line side) |
| Max. current consumption | 2 mA (with terminator) |
| Conductor cross section, flexible | 2.50 mm² ... 0.20 mm² |
| Conductor cross section, rigid | 2.50 mm² ... 0.20 mm² |
| Conductor cross section, flexible [AWG] | 24 ... 12 |
| Conductor cross section AWG | 24 ... 12 |
Safety data
| Input voltage Ui | 17.5 V (FNICO/FISCO ic) |
| Input voltage Ui | 32 V (maximum non-FISCO) |
| Max. voltage Ui | 32 V |
| Input current Ii | 1 A (max. T-BUS load current) |
| Inductance Li | 0 mH (FNICO/FISCO ic) |
| Capacitance Ci | 1.826 nF (FNICO/FISCO ic) |
| Max. output voltage Uo | = Ui |
Interfaces
| Signal | PROFIBUS |
| Signal | FOUNDATION Fieldbus |
Data: Foundation Fieldbus and PROFIBUS PA Segment
| Connection Method | Pluggable COMBICON screw connection for each spur |
| Termination resistor | 100 Ω, external removable plug included |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
| Surge protection | Active if voltage exceeds 39 V (typ.) or 41 V (max.) |
| Voltage drop trunk line / outputs | ≤ 0.2 V |
Dimensions
| Width | 17.5 mm |
| Height | 99.1 mm |
| Depth | 70.4 mm |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | < 95 % (non-condensing) |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Shock | 15g, 11 ms |
| Vibration (Operation) | 1g, 10 Hz ... 150 Hz |
Conformity/Approvals
| Conformance | CE-compliant, additionally EN 61326 |
| IEC | IEC 60529, IEC 61158-2 |
| Fieldbus Foundation | FF-846 |
| EN | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| NE | NAMUR NE 21 |
Ex data
| ATEX | Sira 14ATEX4017X; II 3G; Ex nA IIC T4 Gc; Ex ic IIC T4, FISCO ic |
| IECEx | IECEx SIR 14.0010X; Ex nA IIC T4 Gc; Ex ic IIC T4 Gc, FISCO ic |
| CSA, USA/Canada | Class I, Div. 2, Groups A, B, C, D; Ex nA IIC T4 Gc; Ex nL IIC T4, FNICO; Ex ic IIC T4 Gc, FISCO icClass I, Zone 2; AEx nA IIC T4 Gc; AEx nL IIC T4, FNICO; AEx ic IIC T4 Gc, FISCO ic |
Standards
| Standards/regulations | IEC 60529, IEC 61158-2 |
| Standards/regulations | NE21 |
| Standards/regulations | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| Standards/regulations | FF-846 |
Standards/regulations
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Standards/regulations | IEC 61158-2 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Accessories
Isolated Foundation Fieldbus Power Supply with integrated Terminator. Multiple single channel modules can be installed using Phoenix Contacts TBUS connector system reducing wiring and installation costs.
PT 1X2+F-BE - Base element for protective plug PT with protective circuit for a 2-core floating signal circuit. Integrated gas arrester as coarse protection between GND and PE. Mounting on NS 35/7.5 und NS 35/15, housing width: 17.5 mm.
FB-15-SS - Stainless steel field junction box with 15 ports for use in hazardous locations. Includes FB-ET trunk module, Plugtrab base with option for surge protection plug, and DIN rail space for up to 12 device couplers.
FB-9-SS - Stainless steel field junction box with 9 ports for use in hazardous locations. Includes FB-ET trunk module, Plugtrab base with option for surge protection plug, and DIN rail space for up to 6 device couplers.
