Phoenix Contact 1413178

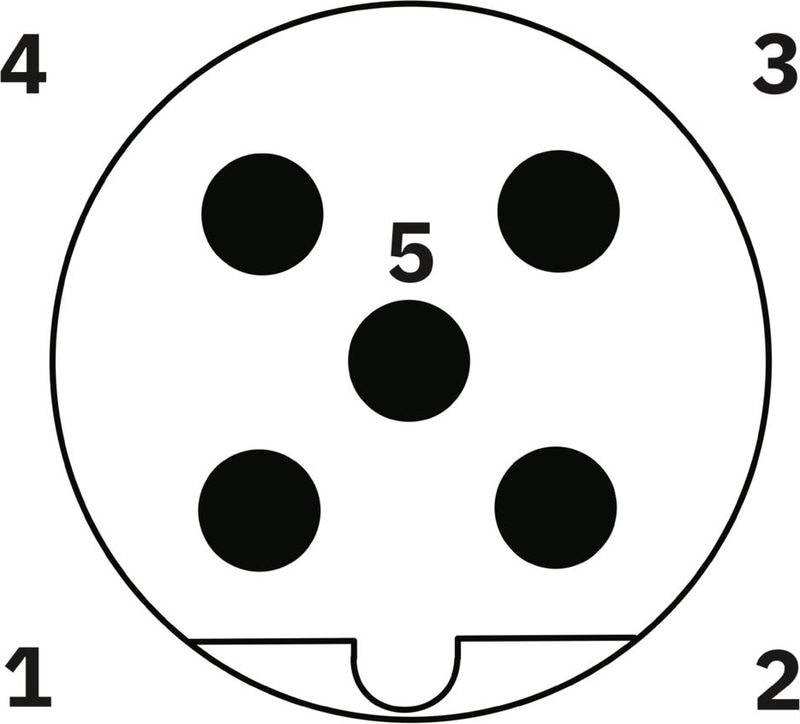

Pin assignment M12 male connector, 5-pos., B-coded, male side

1413178

Official Distributor

By Phoenix Contact

SKU
PHX1413178
MPN
SACC-DSI-M12MSB-5CON-M16/0,8
Weight
0.043 kg
Series SACC-DSI-M

SACC-DSI-M12MSB-5CON-M16/0,8 - Device connector rear mounting

Device connector rear mounting, 5-position, Pin, straight, M12, coding: B, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.34 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239012

Technical Specifications

Notes

Order information:Lock nut is included in the scope of delivery
GeneralContact connection method: Crimp connection

Safety note

Safety noteWARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
Safety note• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Safety note• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
Safety note• The products are suitable for applications in plant, controller, and electrical device engineering.
Safety note• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
Safety note• Assembled products may not be manipulated or improperly opened.
Safety note• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
Safety note• When using the product in direct connection with third-party manufacturers, the user is responsible.
Safety note• For operating voltages > 50 V AC, conductive connector housings must be grounded
Safety note• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
Safety note• Observe the corresponding technical data. You will find information:o On the producto On the packing labelo In the supplied documentationo Online at phoenixcontact.com/products under the product
Safety note• Only use tools recommended by Phoenix Contact
Safety note• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
Safety note• Ensure that the protective or functional ground has been properly connected.
Safety note• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
Safety note• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Mounting

Mounting TypeRear mounting M16 x 1.5

Product properties

Number of Positions5
CodingB
Thread typeM12

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Material specifications

Material wire insulationTPE
Conductor materialTin-plated Cu litz wires

Electrical properties

Rated surge voltage1.5 kV AC
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN60 V
Nominal current IN4 A

Conductor connection

Connection MethodIndividual wires
Contact connection typePin
Conductor Cross Section0.34 mm²

Mechanical data

Insertion/withdrawal cycles> 100

Connection 1

Head designPin
Head cable outletstraight
Head thread typeM12
CodingB

Connection 2

Head designfree cable end

Cable/line

Cable Length0.5 m
Wire diameter incl. insulation1.2 mm ±0.07 mm
Single wire, colorbrown, white, blue, black, gray
Cable cross section0.34 mm²
Conductor materialTin-plated Cu litz wires
Conductor structure signal line7x 0.25 mm
AWG Signal Line22

Ambient conditions

Degree of ProtectionIP67 (When plugged in)
Degree of ProtectionIP65 (When plugged in)
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C

Standards and Regulations

Standards/specificationsaccording to IEC 61076-2-101
