1415297
Official DistributorSKU
PHX1415297
MPN
SACC-DSI-M12MSL-4FE-M16XL/0,2
Weight
0.052 kg
Series SACC-DSI-M

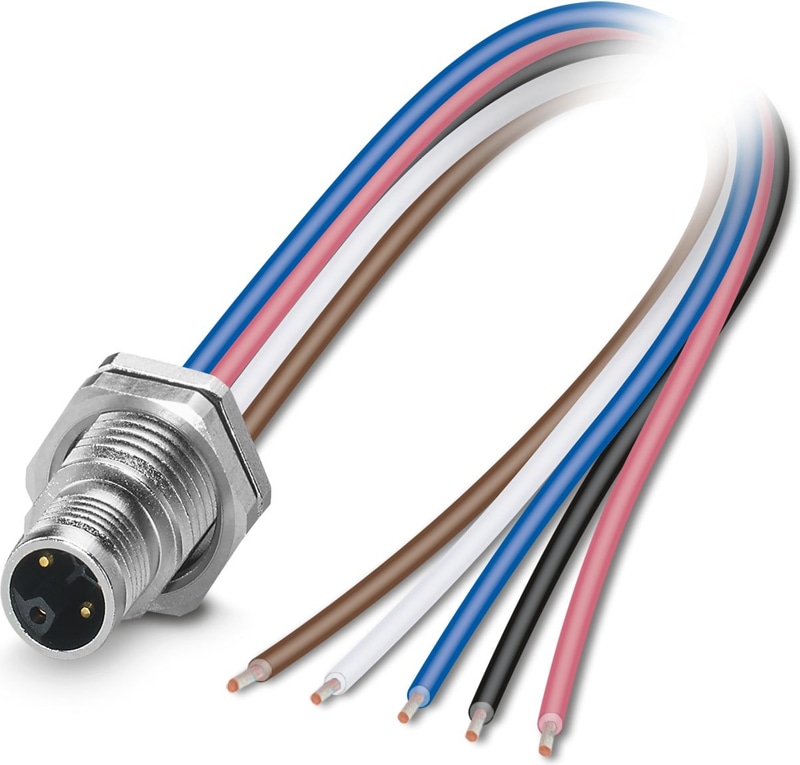

SACC-DSI-M12MSL-4FE-M16XL/0,2 - Device connector rear mounting
Device connector rear mounting, Power, 5-position, Pin, straight, M12-Standard, coding: L, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 2.50 mm2, PEX litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239084
- Preassembled with litz wires for immediate use
- Customer-specific assemblies and litz wire lengths available
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
- SPEEDCON fast locking system reduces cabling times
Documents
Technical Specifications
Notes
| Order information: | Lock nut is included in the scope of delivery |
| Notes on operation | FE not connected to metal parts that can be touched, no protective function |
Mounting
| Mounting Type | Rear mounting M16 x 1.5 XL version, with flat nut, tightening limitation |
| Assembly note | XL version, with flat nut, tightening limitation |
Product properties
| Sensor Type | Power |
| Number of Positions | 5 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | L |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Material specifications
| Material Molding compound | PUR |
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Material of grip body | Zinc die-cast, nickel-plated |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Conductor material | Tin-plated Cu litz wires |
Electrical properties
| Rated voltage in acc. with IEC 61076-2-101 | 63 V |
| Rated surge voltage | 1.5 kV |
| Rated surge voltage | 1.5 kV AC/DC |
| Nominal voltage UN | 63 V |
| Nominal current IN | 16 A |
| Test voltage | 1.5 kV |
| Test voltage Core/Core | 6 kV |
Conductor connection
| Connection Method | Individual wires |
| Contact connection type | Pin |
| Conductor Cross Section | 2.5 mm² |
| Tightening torque | 0.8 Nm ... 1.3 Nm (Installation-side) |
Mechanical data
| Insertion/withdrawal cycles | > 100 |
Connection 1
| Head design | Pin |
| Head cable outlet | straight |
| Head thread type | M12 |
| Head locking type | Standard |
| Coding | L |
Connection 2
| Head design | free cable end |
Cable/line
| Cable Length | 0.2 m |
| Cable Type | PEX litz wire |
| Signal type/category | Power |
| Single wire, color | brown 1, white 2, blue 3, black 4, pink FE |
| Cable cross section | 2.5 mm² |
| Conductor material | Tin-plated Cu litz wires |
| Material wire insulation | PE-X |
| Test voltage Core/Core | 6 kV |
| Halogen-free | according to IEC 60754-1 |
| Flame resistance | in acc. with UL FT-2 |
| Other resistance | Hydrolysis-resistant |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -25 °C ... 105 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (without mechanical actuation) |
| Ambient Temperature (Operation) | -25 °C ... 105 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
Standards and Regulations
| Flame resistance | in acc. with UL FT-2 |
| Other resistance | Hydrolysis-resistant |
M12
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
