Name: 1425590
Brand: Phoenix Contact
SKU: PHX1425590
Price: 25.6500 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

SACC-DSI-M12MSL4FEM16XL-L180GR

Weight

0.019 kg

Series SACC-DSI-M

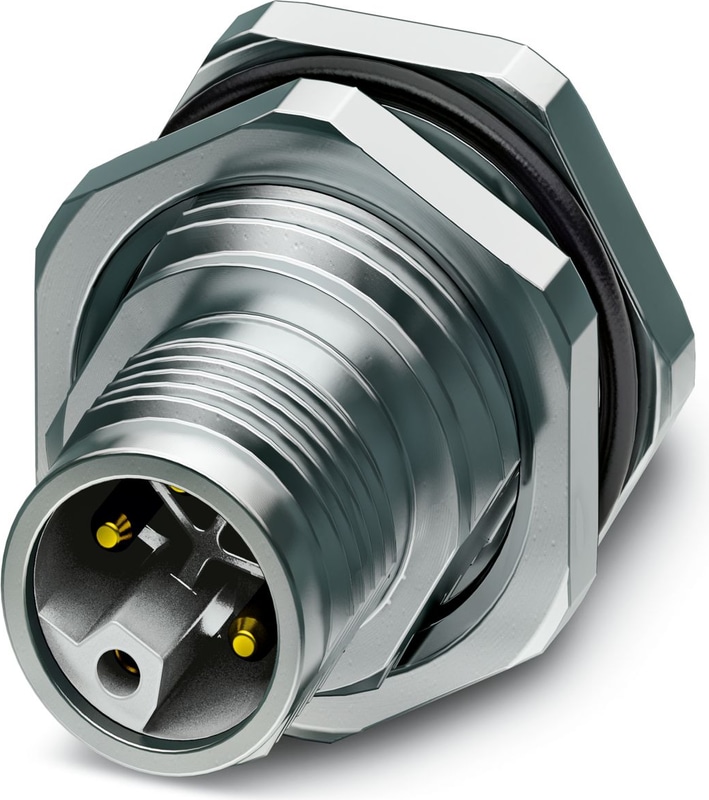

SACC-DSI-M12MSL4FEM16XL-L180GR - Device connector rear mounting

Device connector rear mounting, Power, 5-position, Pin, straight, M12, coding: L, Rear mounting, M16 x 1.5, Solder pins, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239521

Easy PCB assembly: one-piece connectors for wave soldering
For compact devices: transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket

Notes

Notes on operation	The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Notes on operation	FE not connected to metal parts that can be touched, no protective function
Order information:	Lock nut is included in the scope of delivery

Mounting

Mounting Type	Rear mounting M16 x 1.5 With flat nut
Assembly instructions	With flat nut

Product properties

Sensor Type	Power
Number of Positions	5
Coding	L
Thread type	M12

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Material specifications

Flammability rating according to UL 94	V0
Seal material	FKM
Contact Material	CuZn
Contact surface material	Au
Contact carrier material	PA
Material for screw connection	Zinc die-cast, nickel-plated

Electrical properties

Rated surge voltage	1.5 kV
Nominal voltage U_N	63 V DC
Nominal current I_N	16 A

Conductor connection

Connection Method	Solder pins
Contact connection type	Pin

Mechanical data

Insertion/withdrawal cycles

> 100

Connection 1

Head design	Pin
Head cable outlet	straight
Head thread type	M12
Coding	L

Cable/line

Signal type/category

Power

Ambient conditions

Degree of Protection	IP67
Degree of Protection	IP65/IP67
Ambient Temperature (Operation)	-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)	-40 °C ... 85 °C (without mechanical actuation)

M12

Standard designation	M12 connector
Standards/specifications	IEC 61076-2-111
Note	In line with

1560251
Sealing cap - PROT-M12 FS
1430488
M12 metal sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field
