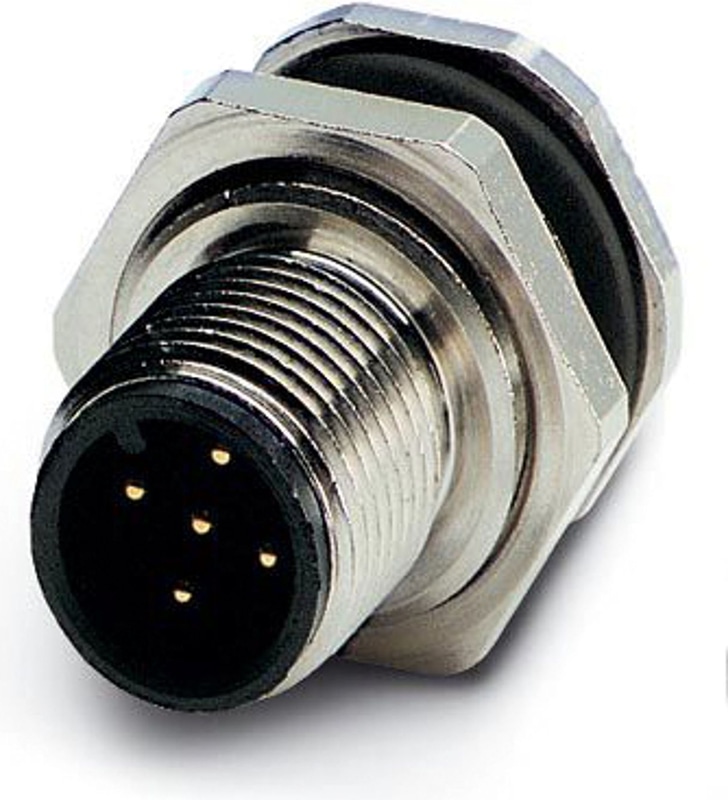

SACC-DSI-M12MSB-5CON-L180 - Device connector rear mounting
Sensor/Actuator flush-type plug, 5-pos., M12, B-coded, rear/screw mounting with Pg9 thread, with straight solder connection
Technical Specifications
Product properties
| Number of Positions | 5 |
| Shielded | no |
| Coding | B |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Electrical properties
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 60 V |
| Nominal current IN | 4 A |
Connection data
| Connection Method | Solder pins |
Signaling
| Status display | No |
| Status display present | No |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Brass, nickel-plated |
Connection 1
| Head design | Plug |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | B |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
Mounting
| Mounting Type | Rear mounting Pg9 With locking nut |
| Assembly instructions | With locking nut |
