2858933
Official DistributorSKU
PHX2858933
MPN
TT-ST-M-2/2-24AC
Weight
0.031 kg
This product is Not Cancellable/Not Returnable
Series TT-ST-M

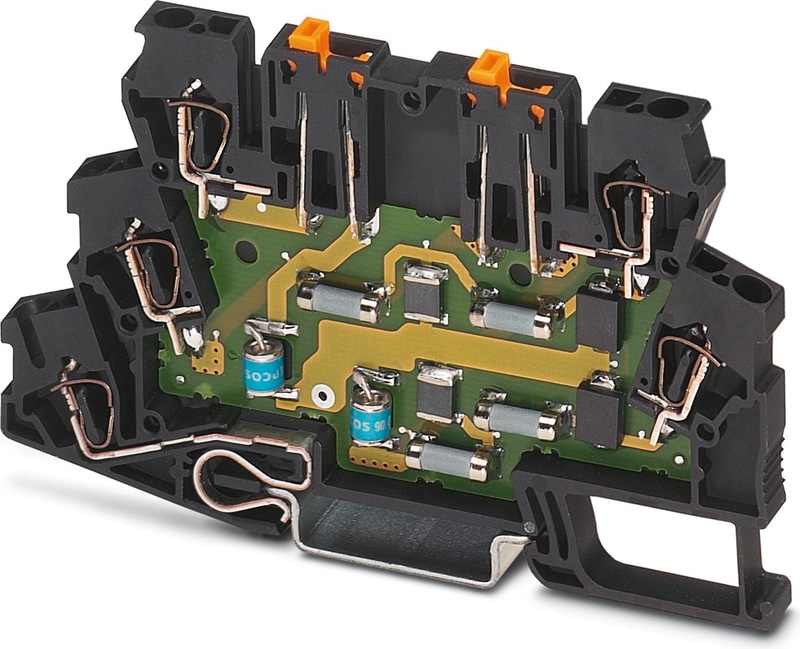

TT-ST-M-2/2-24AC - Surge protection device
TERMITRAB, spring-cage modular terminal block with integrated surge protection and disconnect knives, for assembly on NS 35/7.5, voltage UN 24 V DC, terminal width: 6.2 mm, cover width: 2.2 mm
Technical Specifications
Product properties
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
| Type | Double-level terminal block with disconnect knife |
| Number of Positions | 2 |
| Surge protection fault message | none |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 24 V AC |
Connection data
| Connection Method | Spring-cage connection |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 14 |
Dimensions
| Width | 6.2 mm |
| Height | 100 mm |
| Depth | 65.1 mm (incl. DIN rail 7.5 mm) |
Material specifications
| Flammability rating according to UL 94 | V-2 |
| Housing Material | PA 6.6 |
Mechanical data
| Open side panel | Yes |
Protective circuit
| Direction of action | Line-Earth Ground |
| Maximum continuous voltage UC | 45 V DC |
| Maximum continuous voltage UC | 31 V AC |
| Rated current | 300 mA (45 °C) |
| Operating effective current IC at UC | ≤ 10 µA (per path) |
| Residual current IPE | ≤ 20 µA |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Pulse discharge current Iimp (10/350) µs | 1 kA (per path) |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Total discharge current Itotal (10/350) µs | 2 kA |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 5 kA |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 200 A (in total) |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 55 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 55 V |
| Residual voltage at In (conductor-ground) | ≤ 55 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 70 V |
| Voltage protection level Up (line-earth) | ≤ 80 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 40 V (static) |
| Response time tA (line-earth) | ≤ 1 ns |
| Input attenuation aE, asym. | typ. 0.6 dB (500 kHz/50 Ω) |
| Input attenuation aE, asym. | typ. 0.1 dB (180 kHz/150 Ω system) |
| Input attenuation aE, asym. | typ. 0.1 dB (45 kHz/600 Ω system) |
| Cut-off frequency fg (3 dB), asym. (PE) in 50 Ω system | typ. 3.5 MHz |
| Cut-off frequency fg (3 dB), asym. (PE) in 150 Ω system | typ. 1.1 MHz |
| Cut-off frequency fg (3 dB), asym. (PE) in 600 Ω system | typ. 280 kHz |
| Capacity (core-earth) | 2 nF |
| Resistance per path | 9.4 Ω ±10 % |
| Surge protection fault message | none |
| Max. required back-up fuse | 315 mA |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | D1 - 1 kA |
| Impulse durability (line-earth) | C3 - 100 A |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Altitude | max. 2000 m |
Standards and Regulations
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
Air clearances and creepage distances
| Standards/regulations | EN 60664-1 / IEC 60664-1 |
| Standards/specifications | IEC 61643-21/A1 |
| Note | 2008 |
| Standards/specifications | EN 61643-21/A1 |
| Note | 2009 |
Mounting
| Mounting Type | DIN rail: 35 mm |
Accessories
