2838571
Official DistributorSKU
PHX2838571
MPN
CTM 2X1- 5DC
Weight
0.01 kg
Series CTM

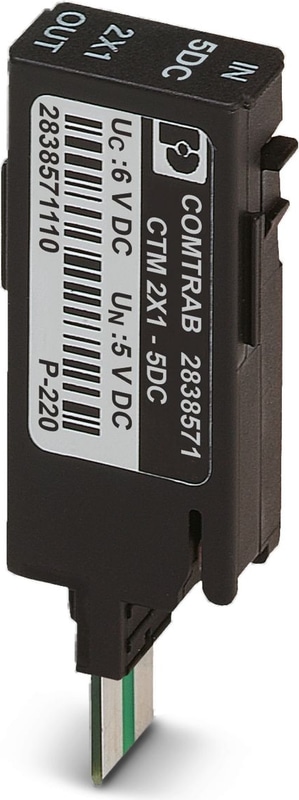

CTM 2X1- 5DC - Surge protection plug
LSA-PLUS plug (COMTRAB CTM) for 2-conductor signal circuits grounded on one side. Nominal voltage: 5 V DC
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Technical Specifications
Product properties
| Product family | COMTRAB |
| IEC test classification | B2 |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| VDE requirement class | B2 |
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
| Type | LSA-PLUS module |
| Surge protection fault message | none |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.10 |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 5 V DC |
Connection data
| Connection Method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
Dimensions
| Width | 9.5 mm |
| Height | 21 mm |
| Depth | 53.5 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | Copper |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | ± 6 V DC |
| Maximum continuous voltage UC | 5 V AC |
| Rated current | 380 mA (25 °C) |
| Operating effective current IC at UC | ≤ 200 µA |
| Residual current IPE | ≤ 2 µA |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Pulse discharge current Iimp (10/350) µs | 1 kA |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Total discharge current Itotal (10/350) µs | 2.5 kA |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 10 kA (in total) |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 18 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 12 V |
| Residual voltage at In (conductor-ground) | ≤ 20 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 15 V |
| Voltage protection level Up (line-earth) | ≤ 50 V (C2 - 10 kV/5 kA, spike) |
| Voltage protection level Up (line-earth) | ≤ 20 V (C3 - 7.5 kV / 100 A, spike) |
| Response time tA (line-earth) | ≤ 1 ns |
| Input attenuation aE, asym. | 0.3 dB (≤ 300 kHz) |
| Cut-off frequency fg (3 dB), asym. (PE) in 100 Ω system | 700 kHz |
| Capacity (core-earth) | 3.5 nF (f=1 MHz / VR= 0 V) |
| Resistance per path | 3.3 Ω 10 % |
| Surge protection fault message | none |
| Impulse durability (line-earth) | C2 - 4 kV / 2 kA |
| Impulse durability (line-earth) | C3 - 100 A |
| Impulse durability (line-earth) | B2 - 4 kV / 100 A |
| Impulse durability (line-earth) | D1 - 1 kA |
| Alternating current carrying capacity (line-earth) | 5 A - 1 s |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
Standards and Regulations
| VDE requirement class | B2 |
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
Air clearances and creepage distances
| Standards/regulations | DIN VDE 0110-1 / IEC 60664-1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
| Standards/specifications | IEC 61643-21 |
| Note | 2000 |
Mounting
| Mounting Type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
Why Proax for Phoenix Contact 2838571?
Proax is an authorized distributor of Phoenix Contact 2838571 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
