2838542
Official DistributorSKU
PHX2838542
MPN
CTM 2X1- 60DC
Weight
0.011 kg
Series CTM

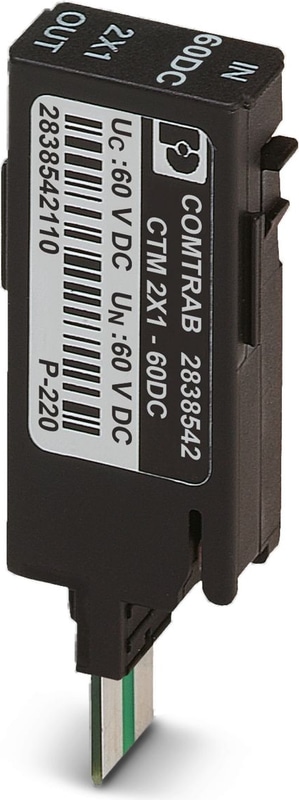

CTM 2X1- 60DC - Surge protection plug
LSA-PLUS plug with protective circuit for 2-conductor signal circuits grounded on one side. Nominal voltage: 60 V DC
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Technical Specifications
Product properties
| Product family | COMTRAB |
| IEC test classification | B2 |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | LSA-PLUS module |
| Surge protection fault message | none |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.10 |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 60 V DC |
Connection data
| Connection Method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
Dimensions
| Width | 9.4 mm |
| Height | 21 mm |
| Depth | 52.4 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | Copper |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA 6.6 |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 60 V DC |
| Maximum continuous voltage UC | 50 V AC |
| Rated current | 380 mA AC (25 °C) |
| Rated current | 150 mA DC (25 °C) |
| Operating effective current IC at UC | ≤ 70 µA |
| Residual current IPE | ≤ 2 µA |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Pulse discharge current Iimp (10/350) µs (line-earth) | 1 kA |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Total discharge current Itotal (10/350) µs | 2.5 kA |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 160 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 160 V |
| Residual voltage at In (conductor-ground) | ≤ 95 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 16 V |
| Voltage protection level Up (line-earth) | ≤ 240 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 150 V (C3 - 100 A) |
| Voltage protection level Up static (line-earth) | ≤ 85 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up static (line-earth) | ≤ 16 V (C3 - 100 A) |
| Response time tA (line-earth) | ≤ 1 ns |
| Input attenuation aE, asym. | typ. 0.3 dB (≤ 500 kHz / 100 Ω) |
| Cut-off frequency fg (3 dB), asym. (PE) in 100 Ω system | typ. 2 MHz |
| Capacity (core-earth) | typ. 1 nF |
| Resistance per path | 3.3 Ω 20 % |
| Surge protection fault message | none |
| Impulse durability (line-earth) | B2 - 4 kV / 100 A |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | C3 - 100 A |
| Impulse durability (line-earth) | D1 - 1 kA |
| Alternating current carrying capacity (line-earth) | 5 A - 1 s |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Altitude | ≤ 2000 m (amsl) |
Standards and Regulations
| Standards/specifications | IEC 61643-21 |
| Note | 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
| Standards/specifications | EN 61643-21 |
| Note | 2001 + A1:2009 + A2:2013 |
Mounting
| Mounting Type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
Why Proax for Phoenix Contact 2838542?
Proax is an authorized distributor of Phoenix Contact 2838542 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
