2838513
Official DistributorSKU
PHX2838513
MPN
CTM 1X2- 24DC
Weight
0.01 kg
Series CTM

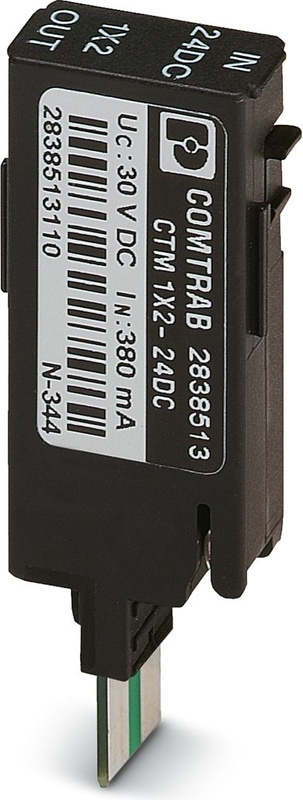

CTM 1X2- 24DC - Surge protection plug
LSA-PLUS plug (COMTRAB CTM) with protection for conductor pairs in floating signal circuits. Nominal voltage: 24 V DC
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Technical Specifications
Product properties
| Product family | COMTRAB |
| IEC test classification | B2 |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| VDE requirement class | B2 |
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
| Type | LSA-PLUS module |
| Number of Positions | 2 |
| Surge protection fault message | none |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.10 |
| Wire pairs per module | 1 |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 24 V DC |
Connection data
| Connection Method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
Dimensions
| Width | 9.5 mm |
| Height | 21 mm |
| Depth | 53.5 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | Copper |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | ± 30 V DC |
| Maximum continuous voltage UC | 21 V AC |
| Rated current | 380 mA AC (25 °C) |
| Operating effective current IC at UC | ≤ 5 µA |
| Residual current IPE | ≤ 2 µA |
| Nominal discharge current In (8/20) µs (line-line) | 5 kA |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Pulse discharge current Iimp (10/350) µs (line-earth) | 1 kA |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Total discharge current Itotal (10/350) µs | 2.5 kA |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 10 kA (in total) |
| Nominal pulse current Ian (10/1000) µs (line-line) | 100 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 70 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 700 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 70 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 700 V |
| Residual voltage at In (conductor-conductor) | ≤ 45 V |
| Residual voltage at In (conductor-ground) | ≤ 60 V |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 25 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 12 V |
| Voltage protection level Up (line-line) | ≤ 70 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-line) | ≤ 45 V (C3, 7.5 kV/100 A) |
| Voltage protection level Up (line-earth) | ≤ 700 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 700 V (C3, 7.5 kV/100 A) |
| Voltage protection level Up static (line-line) | ≤ 45 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up static (line-line) | ≤ 25 V (C3, 7.5 kV/100 A) |
| Voltage protection level Up static (line-earth) | ≤ 60 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up static (line-earth) | ≤ 12 V (C3, 7.5 kV/100 A) |
| Response time tA (line-line) | ≤ 1 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | 0.3 dB (≤ 600 kHz) |
| Cut-off frequency fg (3 dB), sym. in 100 Ω system | 2.7 MHz |
| Capacity (core-core) | 1.2 nF (f=1 MHz / VR= 0 V) |
| Resistance per path | 3.3 Ω 10 % |
| Surge protection fault message | none |
| Impulse durability (line-line) | C2 - 4 kV / 2 kA |
| Impulse durability (line-line) | C3 - 100 A |
| Impulse durability (line-line) | B2 - 4 kV / 100 A |
| Impulse durability (line-earth) | C2 - 4 kV / 2 kA |
| Impulse durability (line-earth) | C3 - 100 A |
| Impulse durability (line-earth) | B2 - 4 kV / 100 A |
| Impulse durability (line-earth) | D1 - 1 kA |
| Alternating current carrying capacity (line-earth) | 5 A - 1 s |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
Standards and Regulations
| VDE requirement class | B2 |
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
Air clearances and creepage distances
| Standards/regulations | DIN VDE 0110-1 / IEC 60664-1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
| Standards/specifications | IEC 61643-21 |
| Note | 2000 |
Mounting
| Mounting Type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
