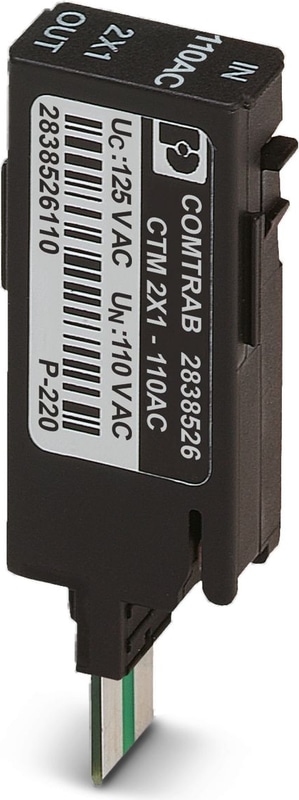

CTM 2X1-110AC - Surge protection plug
LSA-PLUS plug (COMTRAB CTM) with protective circuit for 2-conductor signal circuits grounded on one side. Nominal voltage: 110 V AC
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Technical Specifications
Product properties
| Product family | COMTRAB |
| IEC test classification | B2 |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | LSA-PLUS module |
| Surge protection fault message | none |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.10 |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 110 V AC |
Connection data
| Connection Method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
Dimensions
| Width | 9.4 mm |
| Height | 21 mm |
| Depth | 52.4 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | Copper |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA 6.6 |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 60 V DC |
| Maximum continuous voltage UC | 125 V AC |
| Rated current | 380 mA AC (25 °C) |
| Rated current | 150 mA DC (25 °C) |
| Operating effective current IC at UC | ≤ 5 µA (per path) |
| Residual current IPE | ≤ 5 µA (per path) |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Pulse discharge current Iimp (10/350) µs (line-earth) | 1 kA |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Total discharge current Itotal (10/350) µs | 2.5 kA |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 260 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 15 V |
| Residual voltage at In (conductor-ground) | ≤ 10 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 10 V |
| Voltage protection level Up (line-earth) | ≤ 260 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 260 V (C3 - 100 A) |
| Voltage protection level Up static (line-earth) | ≤ 10 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up static (line-earth) | ≤ 10 V (C3 - 100 A) |
| Response time tA (line-earth) | ≤ 1 ns |
| Input attenuation aE, asym. | typ. 0.3 dB (≤ 3 MHz / 100 Ω) |
| Cut-off frequency fg (3 dB), asym. (PE) in 100 Ω system | typ. 20 MHz |
| Capacity (core-earth) | typ. 100 pF |
| Resistance per path | 3.3 Ω 20 % |
| Surge protection fault message | none |
| Max. required back-up fuse | 150 mA (T/IEC 60127-2/3) |
| Impulse durability (line-earth) | B2 - 4 kV / 100 A |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | C3 - 100 A |
| Impulse durability (line-earth) | D1 - 1 kA |
| Alternating current carrying capacity (line-earth) | 5 A - 1 s |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Altitude | ≤ 2000 m (amsl) |
Standards and Regulations
| Standards/specifications | IEC 61643-21 |
| Note | 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
| Standards/specifications | EN 61643-21 |
| Note | 2001 + A1:2009 + A2:2013 |
Mounting
| Mounting Type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
