Phoenix Contact 2774237
AllConnectorsTerminal blocksScrew connection

2774237

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2774237
MPN
DIKD 1,5-TG
Weight
0.02 kg
Series DIKD

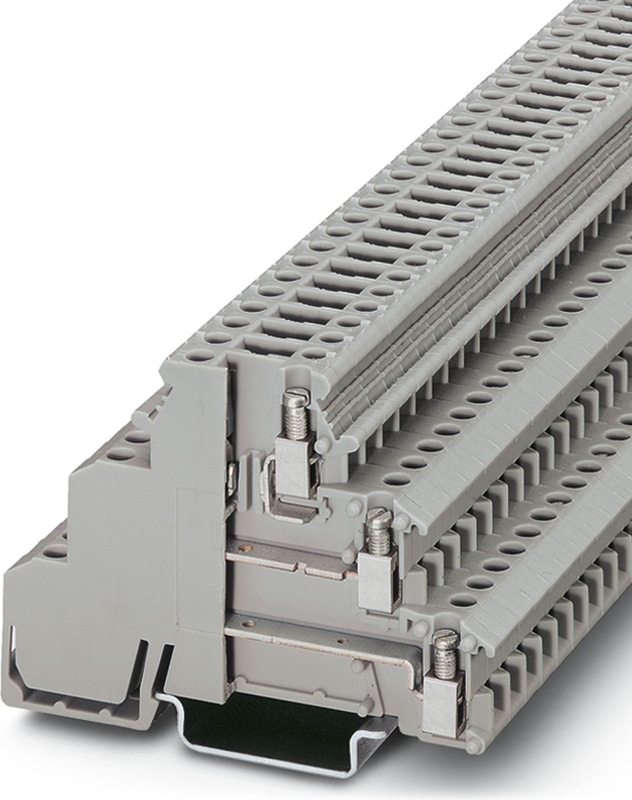

DIKD 1,5-TG - Initiator/actuator terminal block

Initiator/actuator terminal block, Current and voltage are determined by the plug used., nom. voltage: 250 V, nominal current: 15 A, 1st, 2nd and 3rd level, connection method: Screw connection, Rated cross section: 2.5 mm2, cross section: 0.2 mm2 - 4 mm2, connection method: Screw connection, Rated cross section: 2.5 mm2, cross section: 0.2 mm2 - 4 mm2, mounting: NS 35/7,5, NS 35/15, color: gray

  • Terminal blocks with red and green LEDs are available for optical signaling of the initiator and actuator wiring
Technical Specifications

Notes

GeneralCurrent and voltage are determined by the plug used.

Product properties

Number of Connections6
Number of rows3
Potentials3

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage4 kV
Maximum power dissipation for nominal condition0.77 W

Connection data

Number of connections per level2
Nominal cross section2.5 mm²

1st, 2nd and 3rd level

Screw threadM3
Tightening torque0.5 ... 0.6 Nm
Stripping length8 mm
Internal cylindrical gageA3
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.2 mm² ... 4 mm²
Cross section AWG24 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 2.5 mm²
Cross-section with insertion bridge, rigid4 mm²
Cross-section with insertion bridge, flexible2.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1 mm²
Nominal Current15 A
Maximum Load Current15 A (with 4 mm² conductor cross section)
Nominal Voltage250 V (the voltage is determined by the component used)
Nominal cross section2.5 mm²

Disconnect level

Screw threadM3
Tightening torque0.5 ... 0.6 Nm
Stripping length8 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.2 mm² ... 4 mm²
Cross section AWG24 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 2.5 mm²
Cross-section with insertion bridge, rigid4 mm²
Cross-section with insertion bridge, flexible2.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1 mm²
Nominal Current15 A
Maximum Load Current15 A (with 4 mm² conductor cross section)
Nominal Voltage250 V
Nominal cross section2.5 mm²

Dimensions

Width6.2 mm
Height72.5 mm
Depth on NS 35/7,554.5 mm
Depth on NS 35/1562 mm

Material specifications

Colorgray
Flammability rating according to UL 94V2
Insulating material groupI
Insulating materialPA
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)125 °C

Surge voltage test

Test voltage setpoint4.8 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 2.5 mm²0.3 kA
Short-time withstand current 4 mm²0.48 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint1.5 kV
ResultTest passed

Mechanical data

Open side panelNo

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 35
Test force setpoint1 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight0.2 mm² / 0.2 kg
Conductor cross section/weight2.5 mm² / 0.7 kg
Conductor cross section/weight4 mm² / 0.9 kg
ResultTest passed

Aging

ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
Accessories
  • Phoenix Contact0804374
    0804374
    0804374 -
  • Phoenix Contact0921053
    0921053
    ST-SILA250-UK 4 - Fuse plug, nom. voltage: 250 V, nominal current: 6.3 A, connection method: Plug-in connection, depth: 45.7 mm, width: 6.1 mm, height: 33.1 mm, color: black
  • Phoenix Contact0921040
    0921040
    ST-SILED 60-UK 4 - Fuse plug, nom. voltage: 60 V, nominal current: 6.3 A, connection method: Plug-in connection, depth: 45.7 mm, width: 6.1 mm, height: 33.1 mm, color: black
  • Phoenix Contact0921037
    0921037
    ST-SILED 24-UK 4 - Fuse plug, nom. voltage: 24 V, nominal current: 6.3 A, connection method: Plug-in connection, depth: 45.7 mm, width: 6.1 mm, height: 33.1 mm, color: black
  • Phoenix Contact0921024
    0921024
    ST-SILED 12-UK 4 - Fuse plug, nom. voltage: 12 V, nominal current: 6.3 A, connection method: Plug-in connection, depth: 45.7 mm, width: 6.1 mm, height: 33.1 mm, color: black
  • Phoenix Contact1413285
    1413285
    ATP-DIKD 1,5 - Partition plate, depth: 60 mm, width: 2 mm, height: 83 mm, color: gray
  • Phoenix Contact1007222
    1007222
    Marker card - SBS 6:UNBEDRUCKT
  • Phoenix Contact1205053
    1205053
    Screwdriver - SZS 0,6X3,5
  • Phoenix Contact2802316
    2802316
    ST-BE - Component connector, to connect 2-pos. components to the basic terminal block, to be secured with screw-type clamping units, 19 mm high, max. 16 A
  • Phoenix Contact2802387
    2802387
    ST-BE-LA230 - Component plug, with light indicator, to connect 2-pos. components into the basic terminal block, height: 19 mm, color: gray, voltage light indicator: 230 V AC/DC
  • Phoenix Contact2802332
    2802332
    Component plug, for 4-pos. components, two basic terminal blocks required per plug, 19 mm high
  • Phoenix Contact2802374
    2802374
    ST-BE-LA 24 - Component plug, with light indicator, to connect 2-pos. components into the basic terminal block, height: 19 mm, color: Gray, voltage light indicator: 24 V DC
  • Phoenix Contact5025462
    5025462
    ST-K 4 - Isolating plug, silver-plated, can be used in UK...-TG, UKK...-TG, UDK...-TG, MBK...-TG, DIK...-TG, DOK...-TG, and ZFK...-TG disconnect terminal blocks, color: gray
  • Phoenix Contact3025516
    3025516
    Isolating plugs - ST-K 4 BU
  • Phoenix Contact5031003
    5031003
    Isolating plugs - ST-K 4 ASEA
  • Phoenix Contact3048470
    3048470
    ST-K 4 SN - Isolating plug with tin-plated contacts, can be used in UK...-TG, UKK...-TG, UDK...-TG, MBK...-TG, DIK...-TG, DOK...-TG, and ZFK...-TG disconnect terminal blocks, color: gray
  • Phoenix Contact2802329
    2802329
    ST-1N4007 - Component plug, with universal diode, to connect 2-pos. components into the basic terminal block, height: 19 mm, color: Gray
  • Phoenix Contact0921011
    0921011
    ST-SI-UK 4 - Fuse plug, nom. voltage: 250 V, nominal current: 6.3 A, connection method: Plug-in connection, depth: 45.7 mm, width: 6.1 mm, height: 33.1 mm, color: black
  • Phoenix Contact2715940
    2715940
    EB 80- DIK BU - Insertion bridge, pitch: 6.2 mm, number of positions: 80, color: blue
  • Phoenix Contact2716774
    2716774
    EB 10- DIK RD - Insertion bridge, pitch: 6.15 mm, number of positions: 10, color: red
  • Phoenix Contact2716680
    2716680
    EB 10- DIK BU - Insertion bridge, pitch: 6.15 mm, number of positions: 10, color: blue
  • Phoenix Contact2715953
    2715953
    EB 80- DIK RD - Insertion bridge, pitch: 6.2 mm, number of positions: 80, color: red
  • Phoenix Contact2715937
    2715937
    EB 10- DIK GY - Insertion bridge, pitch: 6.15 mm, number of positions: 10, color: gray
  • Phoenix Contact2715788
    2715788
    EB 80- DIK WH - Insertion bridge, pitch: 6.15 mm, number of positions: 80, color: white
  • Phoenix Contact0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1204119
    1204119
    NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1204122
    1204122
    NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact0801704
    0801704
    NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206421
    1206421
    DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206434
    1206434
    NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206560
    1206560
    NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
  • Phoenix Contact1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0806602
    0806602
    NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
  • Phoenix Contact1204135
    1204135
    NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206599
    1206599
    NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206586
    1206586
    NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206573
    1206573
    NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
  • Phoenix Contact1201798
    1201798
    NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
  • Phoenix Contact1051003
    1051003
    Zack marker strip - ZB 6:UNBEDRUCKT
  • Phoenix Contact0824992
    0824992
    Zack marker strip - ZB 6 CUS
  • Phoenix Contact1051016
    1051016
    1051016 -
  • Phoenix Contact1051032
    1051032
    Zack marker strip - ZB 6,LGS:GLEICHE ZAHLEN
  • Phoenix Contact1051414
    1051414
    1051414 -
  • Phoenix Contact1051430
    1051430
    Marker for terminal blocks - ZB 6,LGS:U-N
  • Phoenix Contact0818085
    0818085
    Marker for terminal blocks - UC-TM 6
  • Phoenix Contact0824589
    0824589
    Marker for terminal blocks - UC-TM 6 CUS
  • Phoenix Contact0828736
    0828736
    Marker for terminal blocks - UCT-TM 6
  • Phoenix Contact3022218
    3022218
    CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
  • Phoenix Contact3022276
    3022276
    CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
  • Phoenix Contact0800886
    0800886
    E/NS 35 N - End clamp, width: 9.5 mm, color: gray
  • Phoenix Contact1201442
    1201442
    E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
  • Phoenix Contact1201413
    1201413
    E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray

Why Proax for Phoenix Contact 2774237?

Proax is an authorized distributor of Phoenix Contact 2774237 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size50
Recommended
  • Phoenix Contact2715092
    2715092
    Sensor/actuator terminal block - DIKD 1,5-PV
  • Phoenix Contact2715571
    2715571
    Sensor/actuator terminal block - DIKD 1,5-PV BK
  • Phoenix Contact2715584
    2715584
    Sensor/actuator terminal block - DIKD 1,5-PV BU
  • Phoenix Contact2716376
    2716376
    Sensor/actuator terminal block - DIKD 1,5-LA 24GN/O-M
  • Phoenix Contact2716402
    2716402
    Sensor/actuator terminal block - DIKD 1,5-LA 24GN/U-O
  • Phoenix Contact2715814
    2715814
    Sensor/actuator terminal block - DIKD 1,5-LA 24RD/O-M
  • Phoenix Contact2716279
    2716279
    Sensor/actuator terminal block - DIKD 1,5-LA 24RD/U-O
  • Phoenix Contact2716512
    2716512
    Sensor/actuator terminal block - DIKD 1,5-2D
  • Phoenix Contact3048771
    3048771
    DIKD 1,5 R 2,2K/O-M, Sensor/actuator terminal block, connection method: Screw connection, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
  • Phoenix Contact2716101
    2716101
    Sensor/actuator terminal block - DIKD 1,5 BU
  • Phoenix Contact2715979
    2715979
    Sensor/actuator terminal block - DIKD 1,5
Sold in quantities of 50

Not in stock

Request lead time or order—we'll ensure quick delivery

Phoenix Contact Availability
