Phoenix Contact 2773348
AllPLC & HMII/O systemsI/O systems for the control cabinet (IP20)

2773348

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2773348
MPN
FLM DI 8 M8
Weight
0.16 kg
This product is Not Cancellable/Not Returnable
Series FLM-DI

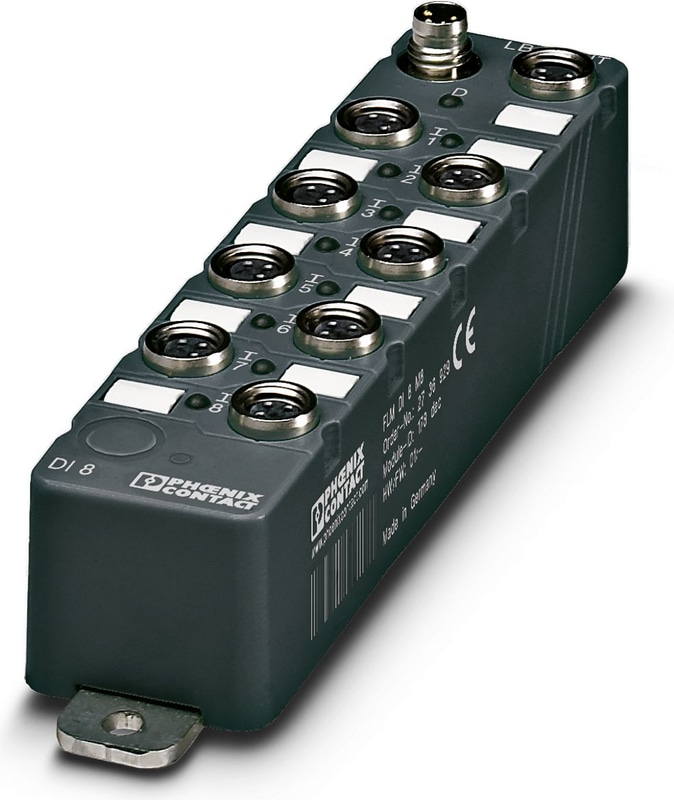

FLM DI 8 M8 - Distributed I/O device

The space-saving local bus device is particularly suitable for use in close proximity to the process. Functions: 8 digital inputs with 3 ms filter time, channel-specific diagnostics, short-circuit and overload protection, 600 mA nominal current, M8 connection method.

  • Can also be connected to an Inline station
  • Optimized for 30 mm mounting profile
  • Diagnostic and status indicators
  • Short-circuit and overload protection
  • Consistent connection via M8 connectors

Documents

Technical Specifications

Dimensions

Width29.8 mm
Height143 mm
Depth26.5 mm
Drill hole spacing133 mm
Note on dimensionsLength details incl. fixing clips

Material specifications

Colorblack

Fieldline local bus

Connection MethodM8 connector
Designation connection pointCopper cable
Number of Positions4
Transmission Speed500 kbps

Module

ID code (dec.)178
ID code (hex)B2
Length code (hex)81
Length code (dec)129
Process data channel8 bit
Input address area8 bit
Output address area0 bit
Register length8 bit
Required parameter data 1 Byte
Required configuration data 4 Byte

Digital:

Input nameDigital inputs
Description of the inputIEC 61131-2 type 1
Number of Inputs8
Connection MethodM8 connector
Connection technology2-, 3-conductor
Input Voltage24 V DC
Input voltage range "0" signal-30 V DC ... 5 V DC
Input voltage range "1" signal13 V DC ... 30 V DC
Nominal input voltage UIN24 V DC
Total sensor currentmax. 600 A
Filter time3 ms
Protective circuitReverse polarity protection

Product properties

Product familyFieldline
Typemodular
No. of channels8

Potentials

Voltage supply UL24 V DC

Supply: Module electronics

Connection MethodM8 connector
DesignationUL
Number of Positions4
Supply Voltage24 V DC
Supply Voltage Range18 V DC ... 30 V DC (including ripple)
Supply current3 A

Electrical isolation/isolation of the voltage ranges

Test voltage: To I/O500 V AC

Connection data

Connection MethodM8 connector

Ambient conditions

Ambient Temperature (Operation)-25 °C ... 60 °C
Degree of ProtectionIP65/IP67
Air pressure (operation)80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 %
Permissible humidity (storage/transport)10 % ... 95 %

Standards and Regulations

Protection classIII (IEC 61140, EN 61140, VDE 0140-1)

Mounting

Mounting TypePanel mounting
Accessories
  • Phoenix Contact1682540
    1682540
    PROT-M8 - An M8 screw plug for the unoccupied M8 sockets of the sensor/actuator cable, boxes and flush-type connectors
  • Phoenix Contact0808781
    0808781
    Zack Marker strip, flat - ZBF 8:UNBEDRUCKT
  • Phoenix Contact1543249
    1543249
    SAC-4P-M 8MS/ 2,0-950 - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on free cable end, cable length: 2 m
  • Phoenix Contact1543252
    1543252
    SAC-4P-M 8MS/ 5,0-950 - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on free cable end, cable length: 5 m
  • Phoenix Contact1543265
    1543265
    SAC-4P-M 8MS/10,0-950 - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on free cable end, cable length: 10 m
  • Phoenix Contact1543278
    1543278
    SAC-4P-M 8MS/15,0-950 - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on free cable end, cable length: 15 m
  • Phoenix Contact1543281
    1543281
    SAC-4P-M 8MS/20,0-950 - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on free cable end, cable length: 20 m
  • Phoenix Contact1543294
    1543294
    SAC-4P- 2,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), free cable end, on Socket straight M8, coding: A, cable length: 2 m
  • Phoenix Contact1543304
    1543304
    SAC-4P- 5,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), free cable end, on Socket straight M8, coding: A, cable length: 5 m
  • Phoenix Contact1543317
    1543317
    SAC-4P-10,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), free cable end, on Socket straight M8, coding: A, cable length: 10 m
  • Phoenix Contact1543320
    1543320
    SAC-4P-15,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), free cable end, on Socket straight M8, coding: A, cable length: 15 m
  • Phoenix Contact1543333
    1543333
    SAC-4P-20,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), free cable end, on Socket straight M8, coding: A, cable length: 20 m
  • Phoenix Contact1543346
    1543346
    SAC-4P-M 8MS/ 0,13-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 0.13 m
  • Phoenix Contact1543511
    1543511
    SAC-4P-M 8MS/ 0,3-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 0.3 m
  • Phoenix Contact1543524
    1543524
    SAC-4P-M 8MS/ 0,5-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 0.5 m
  • Phoenix Contact1543537
    1543537
    SAC-4P-M 8MS/ 1,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 1 m
  • Phoenix Contact1543359
    1543359
    SAC-4P-M 8MS/ 2,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 2 m
  • Phoenix Contact1543362
    1543362
    SAC-4P-M 8MS/ 5,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 5 m
  • Phoenix Contact1543375
    1543375
    SAC-4P-M 8MS/10,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 10 m
  • Phoenix Contact1543388
    1543388
    SAC-4P-M 8MS/15,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 15 m
  • Phoenix Contact1543391
    1543391
    SAC-4P-M 8MS/20,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 20 m
  • Phoenix Contact2736961
    2736961
    FLM ADAP M12/M8 - Adapter for connecting Fieldline Modular M8 devices to a Fieldline Modular M12 local bus
  • Phoenix Contact2736903
    2736903
    IB IL 24 FLM-PAC - Inline, Branch terminal, for extending the Inline local bus, transmission speed in the local bus: 500 kbps / 2 Mbps, degree of protection: IP20, including Inline connector and labeling field
  • Phoenix Contact1542897
    1542897
    SACC-M 8MS-4CON-M-0,34-SH - Connector, Universal, 4-position, shielded, Plug straight M8, coding: A, Screw connection, knurl material: Brass, nickel-plated, external cable diameter 3.5 mm ... 5.5 mm
  • Phoenix Contact1542910
    1542910
    SACC-M 8FS-4CON-M-0,34-SH - Connector, Universal, 4-position, shielded, Socket straight M8, coding: A, Screw connection, knurl material: Brass, nickel-plated, external cable diameter 3.5 mm ... 5.5 mm
