Official DistributorSKU
MPN
IBS IP 500 ELR P-6A DI4/4
Weight
5.42 kg
Series IBS-IP

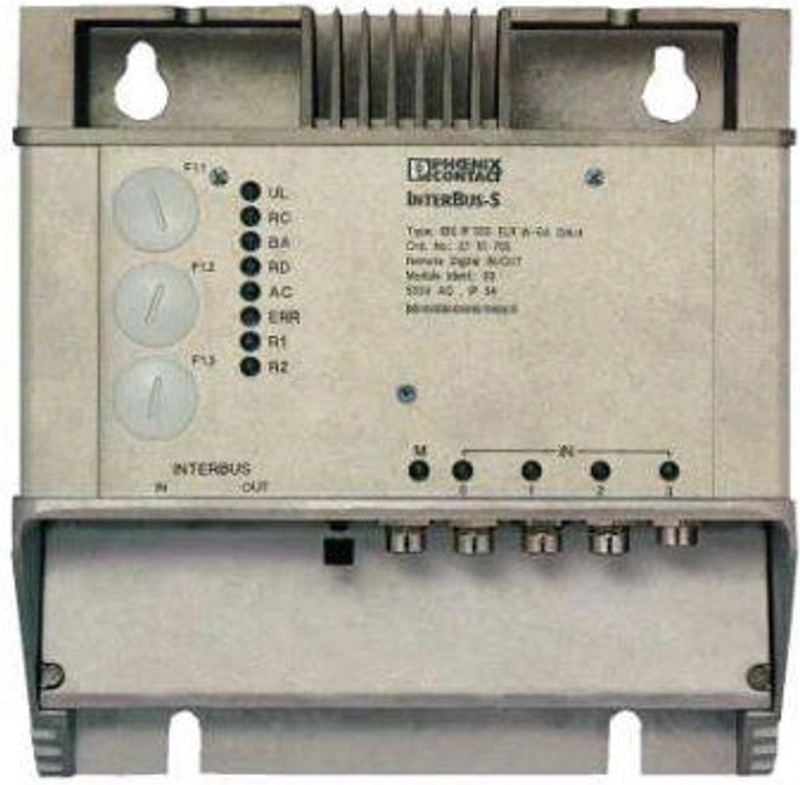

IBS IP 500 ELR P-6A DI4/4 - Motor starter
Drive Shuttle, pole changing INTERBUS motor starter, 4 digital inputs, 24 V DC, IP54 protection
Technical Specifications
Product properties
| Type | Stand-Alone |
Supply
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 20 V DC ... 30 V DC (including ripple) |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Typical current consumption | 0.3 A (plus sensor current) |
Digital
| Number of Inputs | 4 |
| Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 13 V DC ... 30 V DC |
| Connection Method | M12 connector |
| Connection technology | 3-, 4-conductor |
| Typical input current per channel | 5 mA (at 24 V DC) |
| Number of Outputs | 1 |
| Protective circuit | Electronic short-circuit protection |
| Connection Method | M12 connector |
Interfaces
| Connection Method | Remote bus/installation remote bus (with electrical isolation) |
| Transmission length | 260 mm |
Dimensions
| Width | 252 mm |
| Height | 130 mm |
| Length | 260 mm |
Mounting
| Mounting Type | Wall mounting |
Why Proax for Phoenix Contact 2722111?
Proax is an authorized distributor of Phoenix Contact 2722111 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
