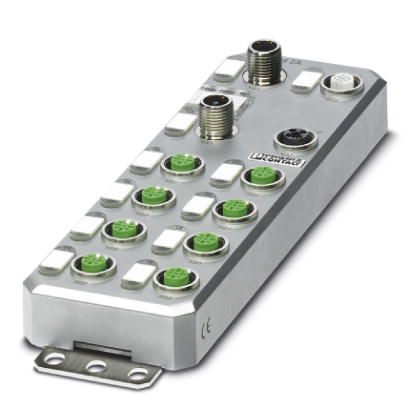

Distributed I/O device - AXL E PB DI8 DO4 2A M12 6M
Axioline E, Digital I/O device, PROFIBUS DP, M12 fast connection technology, Digital inputs: 8, 24 V DC, connection technology: 4-conductor, Digital outputs: 4, 24 V DC, 2 A, connection technology: 3-conductor, Metal housing, degree of protection: IP65/IP67
- Connection to PROFIBUS DP using M12 connectors (B-coded)
- Baud rate of up to 12 Mbaud (automatic baud rate detection)
- Connection of digital sensors and actuators using M12connectors (A-coded)
- Diagnostic and status indicators
- Short-circuit and overload protection of the sensor supply
- IP65/IP67 degree of protection
Technical Specifications
Dimensions
| Width | 60 mm |
| Height | 185 mm |
| Depth | 38 mm |
| Note on dimensions | The height is 194.5 mm including the mounting plate. With fixing clips pulled out, the height is 212 mm. The depth is 38 mm including the mounting plate (30.5 mm without the mounting plate). |
| Drill hole spacing | 198.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 5 % ... 95 % |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of Protection | IP65/IP67 |
General
| Housing Material | Zinc die-cast |
| Mounting Type | Wall mounting or DIN rail mounting; both with mounting plate. |
| Net weight | 726.3 g |
Interfaces
| Designation | PROFIBUS DP |
| Number | 2 |
| Connection Method | M12 fast connection technology |
| Note on the connection method | B-coded |
| Designation connection point | Copper cable |
| Transmission Speed | 9.6 kbps ... 12 Mbps (Automatic baud rate detection) |
| Transmission physics | PROFIBUS-DP-compliant copper cable |
| Address area assignment | 1 ... 126, adjustable |
| Number of Positions | 5 |
Network/bus system
| Designation | PROFIBUS DP |
| Equipment type | PROFIBUS slave |
| System-specific protocols | PROFIBUS protocols DP V1 |
Supply
| Designation | Supply of module electronics and sensors (US) |
| Connection Method | M12 connector (T-coded) |
| Number of Positions | 4 |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 18 V DC ... 31.2 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 110 mA ±15 % (at 24 V DC) |
| Designation | Supply of actuators (UA) |
| Connection Method | M12 connector (T-coded) |
| Number of Positions | 4 |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 18 V DC ... 31.2 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 30 mA ±15 % (at 24 V DC) |
Digital inputs
| Input name | Digital inputs |
| Description of the input | EN 61131-2 types 1 and 3 |
| Connection Method | M12 connector, double occupancy |
| Connection technology | 4-conductor |
| Number of Inputs | 8 |
| Protective circuit | Overload protection, short-circuit protection of sensor supply |
| Nominal input voltage UIN | 24 V DC |
| Nominal input current at UIN | typ. 3 mA |
| Input filter time | < 1000 µs |
| Input voltage range "0" signal | 0 V ... 5 V DC |
| Input voltage range "1" signal | 11 V DC ... 30 V DC |
Digital outputs
| Output name | Digital outputs |
| Number of Outputs | 4 |
| Connection Method | M12 connector (A-coded) |
| Connection technology | 3-conductor |
| Protective circuit | Overload protection, short-circuit protection of outputs yes |
| Output Voltage | 24 V DC |
| Nominal Output Voltage | 24 V DC (from voltage UA) |
| Output current per channel | 2 A |
| Nominal load, inductive | 48 VA (1.2 H, 48 Ω, with nominal voltage) |
| Nominal load, ohmic | 48 W (48 Ω, with nominal voltage) |
| Switching frequency | max. 5500 per second (with at least 50 mA load current) |
| Output voltage when switched off | max. 1 V |
| Output current when switched off | max. 20 µA |
| Behavior with overload | Auto restart |
| Reverse voltage resistance to short pulses | Reverse voltage proof |
Electrical isolation
| Test section | 24 V supply (communications power and sensor supply, digital inputs)/bus connection 500 V AC 50 Hz 1 min. |
| Test section | 24 V supply (communications power and sensor supply, digital inputs)/FE 500 V AC 50 Hz 1 min. |
| Test section | Bus connection / FE 500 V AC 50 Hz 1 min. |
| Test section | 24 V supply (actuator supply, digital outputs)/24 V supply (communications power and sensor supply, digital inputs) 500 V AC 50 Hz 1 min. |
| Test section | 24 V supply (actuator supply, digital outputs)/bus connection 500 V AC 50 Hz 1 min. |
| Test section | 24 V supply (actuator supply, digital outputs)/FE 500 V AC 50 Hz 1 min. |
Standards and Regulations
| Immunity to ESD | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge |
| Immunity to EF | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m |
| Immunity to burst | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion B, 2 kV |
| Immunity to surge | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical) |
| Immunity to conducted interference | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V |
| Interference emission | Noise emission test in accordance with EN 61000-6-4/IEC 61000-6-4 Class A |
| Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Mechanical tests | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse |
| Mechanical tests | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 25; |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
