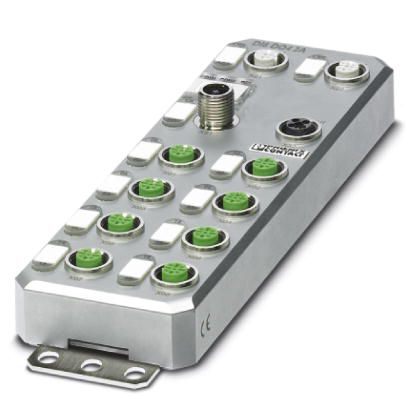

Distributed I/O device AXL E S3 DI8 DO4 2A M12 6M

Axioline E, Digital I/O device, Sercos, M12 fast connection technology, Digital inputs: 8, 24 V DC, connection method: 4-conductor, Digital outputs: 4, 24 V DC, 2 A, connection method: 3-conductor, Metal housing, degree of protection: IP65/IP67

Connection to Sercos network using M12connectors (D-coded)
Transmission speed of 100 Mbps with a minimum cycle time of 250 µs
Connection of digital sensors and actuators using M12connectors (A-coded)
Diagnostic and status indicators
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection

Technical Specifications

Note

Utilization restriction

EMC: class A product, see manufacturer's declaration in the download area

Dimensions

Dimensional drawing
Width	60 mm
Height	185 mm
Depth	38 mm
Note on dimensions	The height is 194.5 mm including the mounting plate. With fixing clips pulled out, the height is 212 mm. The depth is 38 mm including the mounting plate (30.5 mm without the mounting plate).
Drill hole spacing	198.5 mm

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 60 °C
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 %
Permissible humidity (storage/transport)	5 % ... 95 %
Air pressure (operation)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of Protection	IP65/IP67

General

Housing Material	Zinc die-cast
Mounting Type	Wall mounting or DIN rail mounting; both with mounting plate.
Net weight	708.1 g

Interfaces

Designation	Sercos
Number	2
Connection Method	M12 fast connection technology
Note on the connection method	D-coded
Designation connection point	Copper cable
Transmission Speed	100 Mbps (with auto negotiation)
Number of Positions	4

Network/bus system

Designation	Sercos
Equipment type	Sercos slave
Device profile	FSP_IO
System-specific protocols	Sercos protocols Sercos
System-specific protocols	Sercos protocols S/IP
Protocols Supported	HTTP
Protocols Supported	TFTP
Protocols Supported	FTP
Specification	Sercos specification 1.1.2

Supply

Designation	Module electronics and sensors (U_S)
Connection Method	M12 connector (T-coded)
Number of Positions	4
Supply Voltage	24 V DC
Supply Voltage Range	18 V DC ... 31.2 V DC (including all tolerances, including ripple)
Current consumption	typ. 140 mA ±15 % (at 24 V DC)
Designation	Actuators (U_A)
Connection Method	M12 connector (T-coded)
Number of Positions	4
Supply Voltage	24 V DC
Supply Voltage Range	18 V DC ... 31.2 V DC (including all tolerances, including ripple)
Current consumption	typ. 30 mA ±15 % (at 24 V DC)

Digital inputs

Input name	Digital inputs
Description of the input	EN 61131-2 types 1 and 3
Connection Method	M12 connector, double occupancy
Connection technology	4-conductor
Number of Inputs	8
Protective circuit	Overload protection, short-circuit protection of sensor supply
Nominal input voltage U_IN	24 V DC
Nominal input current at U_IN	typ. 3 mA
Input filter time	< 1000 µs
Input voltage range "0" signal	0 V ... 5 V DC
Input voltage range "1" signal	11 V DC ... 30 V DC

Digital outputs

Output name	Digital outputs
Connection Method	M12 connector, (A-coded)
Connection technology	3-conductor
Number of Outputs	4
Protective circuit	Overload protection, short-circuit protection of outputs yes
Output Voltage	24 V
Nominal Output Voltage	24 V DC (from voltage U_A)
Nominal load, inductive	48 VA (1.2 H, 48 Ω, with nominal voltage)
Nominal load, ohmic	48 W (48 Ω, with nominal voltage)
Switching frequency	max. 5500 per second (with at least 50 mA load current)
Output voltage when switched off	max. 1 V
Output current when switched off	max. 20 µA
Behavior with overload	Auto restart
Reverse voltage resistance to short pulses	Reverse voltage proof

Electrical isolation

Test section	24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min.
Test section	24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
Test section	24 V supply (communications power and sensor supply, digital inputs)/FE 500 V AC 50 Hz 1 min.
Test section	Bus connection (Ethernet 1)/FE 500 V AC 50 Hz 1 min.
Test section	Bus connection (Ethernet 2)/FE 500 V AC 50 Hz 1 min.
Test section	Bus connection (Ethernet 1)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
Test section	24 V supply (actuator supply, digital outputs)/24 V supply (communications power and sensor supply, digital inputs) 500 V AC 50 Hz 1 min.
Test section	24 V supply (actuator supply, digital outputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min.
Test section	24 V supply (actuator supply, digital outputs)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
Test section	24 V supply (actuator supply, digital outputs)/FE 500 V AC 50 Hz 1 min.

Standards and Regulations

Immunity to ESD	Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge
Immunity to EF	Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m
Immunity to burst	Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion B, 2 kV
Immunity to surge	Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical)
Immunity to conducted interference	Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V
Interference emission	Noise emission test as per EN 61000-6-4 Class A
Mechanical tests	Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
Mechanical tests	Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse
Mechanical tests	Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

Environmental Product Compliance

REACh SVHC	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 25;
China RoHS	For details about hazardous substances go to tab “Downloads

Accessories

1680539
Screw plug - PROT-M12
1521261
SACC-M12MSD-4CON-PG 9-SH - Data connector, Ethernet CAT5 (100 Mbps), 4-position, shielded, Plug straight M12, coding: D, Screw connection, knurl material: Brass, nickel-plated, cable gland Pg9, external cable diameter 6 mm ... 8 mm
2701761
AXL E MP 60 - Mounting panel for Axioline E metal devices
0830765
0830765 -
1424116
SAC-4P- 1,5-PUR/M12FRT SH - Power cable, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper-braided shield, approx. 85% covering), Advanced Shielding Technology, free cable end, on Socket angled M12, coding: T, cable length: 1.5 m, For direct current up to 12 A/63 V
1424120
SAC-4P-M12MST/ 1,5-PUR SH - Power cable, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper-braided shield, approx. 85% covering), Advanced Shielding Technology, Plug straight M12, coding: T, on free cable end, cable length: 1.5 m, For direct current up to 12 A/63 V
1419172
VS-MSDS-OE-93K-LI/2,0 - Bus system cable, Sercos CAT5 (100 Mbps), 4-position, PVC/PVC, signal red RAL 3020, shielded (Tinned copper braided shield), Plug straight M12, coding: D / IP67, on free cable end, cable length: 2 m
1419169
VS-MSDS-MSDS-93K-LI/2,0 - Bus system cable, Sercos CAT5 (100 Mbps), 4-position, PVC/PVC, signal red RAL 3020, shielded (Tinned copper braided shield), Plug straight M12, coding: D / IP67, on Plug straight M12, coding: D / IP67, cable length: 2 m
1419168
VS-MSDS-IP20-93K-LI/2,0 - Bus system cable, Sercos CAT5 (100 Mbps), 4-position, PVC/PVC, signal red RAL 3020, shielded (Tinned copper braided shield), Plug straight M12 SPEEDCON, coding: D / IP67, on Plug straight RJ45 / IP20, cable length: 2 m
1408812
SAC-4P-M12MST/ 1,0-PUR - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: T, on free cable end, cable length: 1 m, For direct current up to 12 A/63 V
1408813
SAC-4P-M12MST/ 2,0-PUR - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: T, on free cable end, cable length: 2 m, For direct current up to 12 A/63 V
1408814
Power cable - SAC-4P-M12MST/ 5,0-PUR
1408815
SAC-4P-M12MST/10,0-PUR - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: T, on free cable end, cable length: 10 m, For direct current up to 12 A/63 V
1408816
SAC-4P-M12MRT/ 1,0-PUR - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug angled M12, coding: T, on free cable end, cable length: 1 m, For direct current up to 12 A/63 V
1408819
SAC-4P-M12MRT/ 2,0-PUR - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug angled M12, coding: T, on free cable end, cable length: 2 m, For direct current up to 12 A/63 V
1408820
SAC-4P-M12MRT/ 5,0-PUR - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug angled M12, coding: T, on free cable end, cable length: 5 m, For direct current up to 12 A/63 V
1408822
SAC-4P-M12MRT/10,0-PUR - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug angled M12, coding: T, on free cable end, cable length: 10 m, For direct current up to 12 A/63 V
1408823
SAC-4P- 1,0-PUR/M12FST - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight M12, coding: T, cable length: 1 m, For direct current up to 12 A/63 V
1408824
SAC-4P- 2,0-PUR/M12FST - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight M12, coding: T, cable length: 2 m, For direct current up to 12 A/63 V
1408825
SAC-4P- 5,0-PUR/M12FST - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight M12, coding: T, cable length: 5 m, For direct current up to 12 A/63 V
1408826
Power cable - SAC-4P-10,0-PUR/M12FST
1408827
SAC-4P- 1,0-PUR/M12FRT - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket angled M12, coding: T, cable length: 1 m, For direct current up to 12 A/63 V
1408828
SAC-4P- 2,0-PUR/M12FRT - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket angled M12, coding: T, cable length: 2 m, For direct current up to 12 A/63 V
1408829
SAC-4P- 5,0-PUR/M12FRT - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket angled M12, coding: T, cable length: 5 m, For direct current up to 12 A/63 V
1408830
SAC-4P-10,0-PUR/M12FRT - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket angled M12, coding: T, cable length: 10 m, For direct current up to 12 A/63 V
1408806
Power cable - SAC-4P-M12MST/ 0,3-PUR/M12FST
1408807
SAC-4P-M12MST/ 0,6-PUR/M12FST - Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: T, on Socket straight M12, coding: T, cable length: 0.6 m, For direct current up to 12 A/63 V
1408808
Power cable - SAC-4P-M12MST/ 1,0-PUR/M12FST
1408809
Power cable - SAC-4P-M12MST/ 2,0-PUR/M12FST
1408810
Power cable - SAC-4P-M12MST/ 5,0-PUR/M12FST
1408811
Power cable - SAC-4P-M12MST/10,0-PUR/M12FST
1523984
Y distributor - SAC-3P-Y/2XM 8FS SCO
1523971
Y distributor - SAC-3P-Y/2XFS PE SCO
1523968
Y distributor - SAC-3P-Y/2XFS B PE SCO
1546068
Y distributor - SAC-5P-Y/2XFS VP SCO
