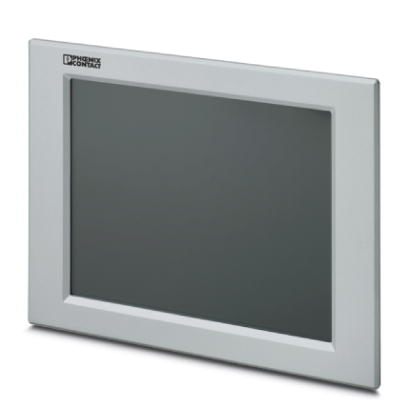

15-in. display shown
Official DistributorSKU
Panel PC BL PPC 1000
The BL PPC 1000 is a configurable panel PC that utilizes the Intel® Atom™ 1.66 GHz N455 processor chosen for its balance of processing power and energy efficiency. The fanless design and I/O capability make the BL PPC 1000 a product that can be used in a wide variety of applications. The three built-in COM ports enable connections to legacy RS-232 devices. One COM port can also be configured for RS-422 or RS-485 protocols. Mass storage options include CompactFlash® cards, HDD, or SSD.
- IP65 degree of protection (front) IP20 degree of protection (back)
- LCD display with resistive touch screen
- Can be configured according to customer requirements
- Three COM ports
- Fanless design
- Energy-efficient Intel® Atom™ processor
- IP65 degree of protection (front) IP20 degree of protection (back)
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
Dimensions
| Note regarding installation dimension | dependent on configuration |
Display
| Display | 30.7 cm / 12.1" TFT |
| Display | 38.1 cm/15" TFT |
| Display | 43,2 cm / 17"-TFT |
| Screen resolution | 800 x 600 Pixel(s) (SVGA) |
| Screen resolution | 1024 x 768 Pixel(s) (XGA) |
| Screen resolution | 1280 x 1024 Pixel(s) (SXGA) |
| Backlighting | CCFL |
| Backlighting | |
| Display backlight MTBF | > 50000 h (Dependent on configuration) |
| Touch technology | analog resistive (polyester) |
Computer data
| Processor | Intel® Atom™ N455 1.66 GHz |
| Cooling | passive |
| Operating Systems | without operating system |
| Operating Systems | Windows® 7 Professional SP1 (32-bit), English |
| Operating Systems | Windows® 7 Professional SP1 (32-bit), German |
| Operating Systems | Windows® 7 Ultimate SP1 (32-bit), Multi-language |
| Operating Systems | Windows® Embedded Standard 2009 |
| Operating Systems | Windows® Embedded Standard 7 (32-bit) |
| RAM | 2 GB DDR3 SODIMM |
| Mass Storage | without mass storage |
| Mass Storage | CompactFlash®, 1 GB |
| Mass Storage | CompactFlash®, 2 GB |
| Mass Storage | CompactFlash®, 4 GB |
| Mass Storage | CompactFlash®, 8 GB |
| Mass Storage | CompactFlash®, 16 GB |
| Mass Storage | CompactFlash®, 32 GB |
| Mass Storage | SSD (SLC), 16 GB |
| Mass Storage | SSD (SLC), 32 GB |
| Mass Storage | 2.5" HDD SATA, 320 GB |
| Mass Storage | 2.5" SSD (MLC), 80 GB |
| Mass Storage | 2.5" SSD (MLC), 160 GB |
| Network | 2x Ethernet (10/100/1000 Mbps), RJ45 |
| Interfaces | 1x COM (RS-232/422/485) |
| Interfaces | 2x COM (RS-232) |
| Interfaces | 4x USB 2.0 |
| Optical drive | without drive |
| Realtime Clock | Yes (battery-backed) |
| Service life of battery | 5 years (typical) |
General
| Mounting Type | Front installation |
Ambient conditions
| Degree of Protection | IP65 (front), IP20 (back) |
| Ambient Temperature (Operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (Operation) | DIN EN 60068-2-6 |
| Shock | 15g, 11 ms in accordance with IEC 60068-2-27 |
Device supply
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 28.8 V DC |
| Power consumption | typ. 12.5 W |
| Power Supply Unit | 24 V DC ±20 % |
Standards and Regulations
| Shock | 15g, 11 ms in accordance with IEC 60068-2-27 |
| Vibration (Operation) | DIN EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
UPGRADE WIN 7 PRO SP1 X86-EN, This upgrade tool only works with Valueline and Basicline computers originally manufactured with Windows® XP Professional operating systems. Note that using this tool to upgrade a system overwrites all previously stored data. Please download the instructions on how to use this tool.
CUC-V06-F1PGY-UBA/UBBB - USB socket insert, 4-pos., USB socket type A to USB socket type B, socket type A to panel mounting frame side, for the Freenet system in the panel mounting frame, IP20 terminal outlet, 19" patch panel, and service interface
VS-04-C-SDA/SDB/1,8 - USB cable, with USB connectors at both ends, assembled connector type: A on B, length:1.8 m
