Official DistributorSKU
MPN
DFLK-D15 SUB-HD/B
Weight
0.074 kg
Series DFLK-D

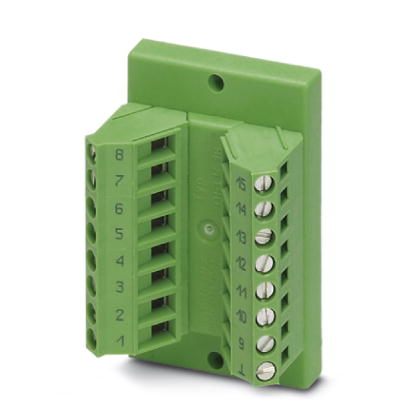

DFLK-D15 SUB-HD/B - Interface module
The VARIOFACE feed-through module implements a 1:1 connection between screw connection terminal blocks and a high-density D-SUB miniature female strip (number of positions: 15). A separate ground pick-off is available.
Technical Specifications
| Width | 39 mm |
| Height | 58.4 mm |
| Depth | 33 mm |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Max. perm. operating voltage | 24 V AC/DC |
| Max. perm. current (per branch) | 1.5 A |
| Number of Positions | 15 |
| Mounting Position | any |
| Assembly instructions | In rows with zero spacing |
| Connection name | Field level |
| Connection in acc. with standard | IEC / EN |
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of Positions | 16 |
| Connection name | Controller level |
| Connection Method | High-density D-SUB socket strip |
