DFLK-D25 SUB/S
Weight
0.084 kg
This product is Not Cancellable/Not Returnable
Series DFLK-D

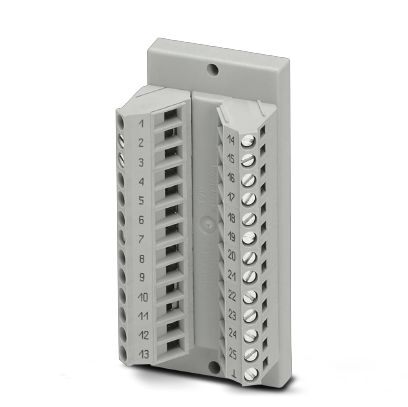

DFLK-D25 SUB/S - Interface module
The VARIOFACE feed-through module implements a 1:1 connection between screw connection terminal blocks and a D-SUB miniature pin strip (number of positions: 25). A separate ground pick-off is available.
- 9-pos. ... 50-pos.
- 9-˽...˽37-pos.: separate ground pick-off
- 50-pos.: no ground pick-off
- In accordance with IEC˽60807-2
- 1:1 connection
- D-SUB 4-40 UNC thread
- Screw connection
Technical Specifications
Dimensions
| Width | 40 mm |
| Height | 83.5 mm |
| Depth | 33.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Degree of Protection | IP20 |
General
| Nominal voltage UN | 25 V AC |
| Nominal voltage UN | 60 V DC |
| Max. perm. current (per branch) | 2.5 A |
| Max. permissible current (all branches) | 50 A |
| Number of Positions | 25 |
| Mounting Position | any |
| Assembly instructions | in rows with zero spacing |
Connection data
| Connection name | Field level |
| Connection in acc. with standard | IEC / EN |
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data 2
| Connection name | Controller level |
| Connection Method | D-SUB pin strip |
| Number of Positions | 25 |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
| Rated Insulation Voltage | 125 V |
| Rated surge voltage | 1.2 kV (Functional insulation) |
| Pollution degree | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
