2903065
Official DistributorSKU
PHX2903065
MPN
DFLK-D15 SUB/F/FKCT
Weight
0.075 kg
Series DFLK-D

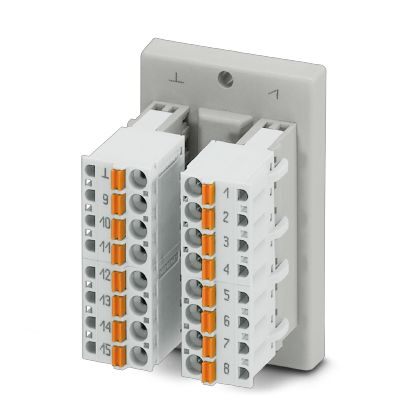

DFLK-D15 SUB/F/FKCT - Interface module
The VARIOFACE feed-through module implements a 1:1 connection between plug-in push-in spring-cage connection terminal blocks and a D-SUB miniature female strip (number of positions: 15). A separate ground pick-off is available.
Technical Specifications
Dimensions
| Width | 38 mm |
| Height | 58.5 mm |
| Depth | 46 mm |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Degree of Protection | IP20 |
General
| Nominal voltage UN | 25 V AC |
| Nominal voltage UN | 60 V DC |
| Max. perm. current (per branch) | 2.5 A |
| Max. permissible current (all branches) | 37.5 A |
| Number of Positions | 15 |
| Mounting Position | any |
| Assembly instructions | in rows with zero spacing |
Connection data
| Connection name | Field level |
| Connection Method | Push-in spring connection |
| Stripping length | 10 mm |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| pluggable | Yes |
Connection data 2
| Connection name | Controller level |
| Connection Method | D-SUB socket strip |
| Number of Positions | 15 |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
| Standards/regulations | IEC 60664 |
| Rated Insulation Voltage | 125 V |
| Rated surge voltage | 1.2 kV (Functional insulation) |
| Pollution degree | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
Why Proax for Phoenix Contact 2903065?
Proax is an authorized distributor of Phoenix Contact 2903065 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
