HC-D 15-AML
Weight
0.141 kg
Series HC-D
HC-D 15-AML - Housing

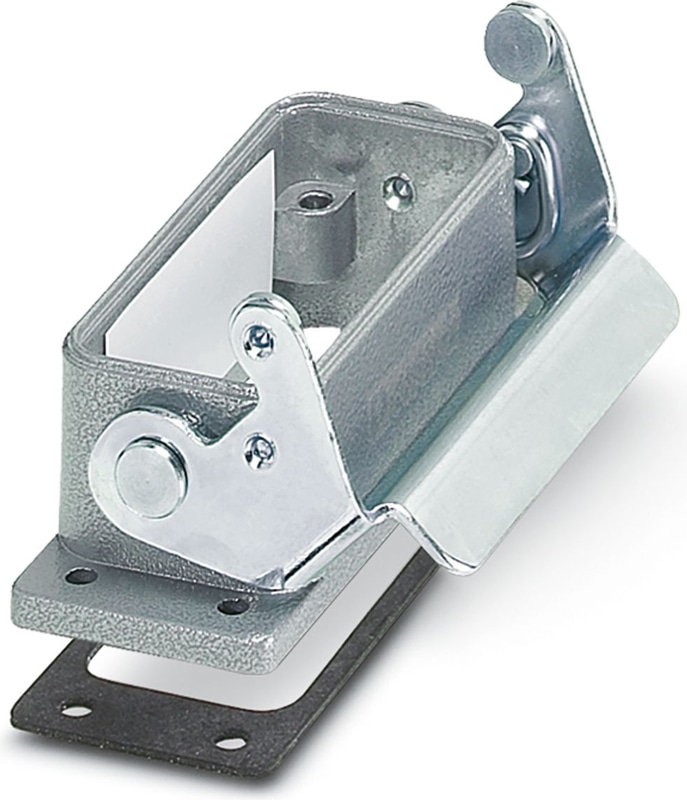

HEAVYCON panel mounting base D15, with single locking latch, height 26 mm
Technical Specifications
Notes
| General | For contact inserts HC-D15, A10 |
Product properties
| Housing type | Panel mounting base |
| Application | Standard |
| Type | D15 |
| Shielded | no |
| Pg screw connection | none |
Dimensions
| Width | 30.5 mm |
| Height | 26 mm |
| Length | 81 mm |
Installation dimensions
| Width of the assembly cutout | 24 mm |
| Length of the assembly cutout | 57.5 mm |
Material specifications
| Seal material | CR |
| Housing Material | die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Steel, galvanized |
Mechanical data
| Locking Type | Latch |
Mounting
| Assembly instructions | The flat gasket is supplied closed. The required opening is not created until the assembly stage. |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
