1660342
Official DistributorSKU
PHX1660342
MPN
HC-D 15-AP-GY
Weight
0.012 kg
Series HC-D

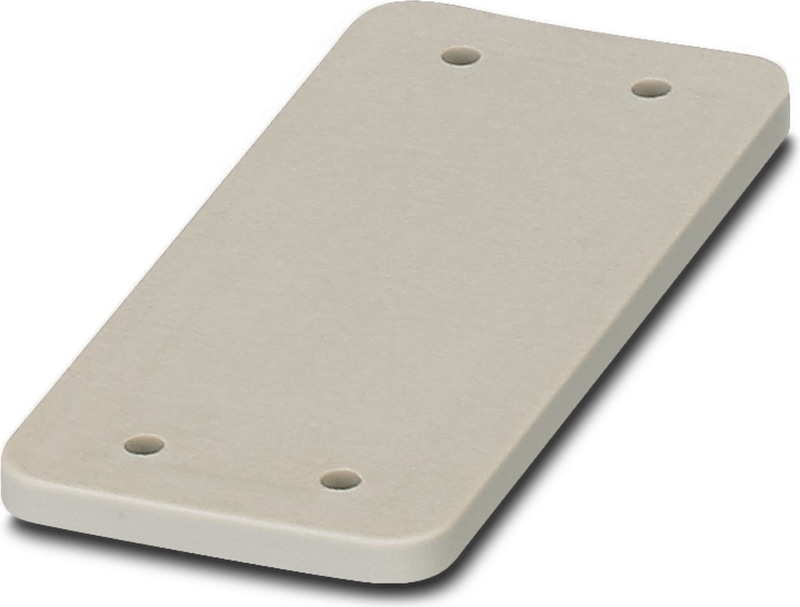

HC-D 15-AP-GY - Cover plate
HEAVYCON cover plate, for wall cutouts of type D15, 3.5 mm thick, gray
Technical Specifications
Notes
| General | For wall cutouts of type D15 |
Product properties
| Type | D15 |
| Seal present | yes |
Dimensions
| Width | 40 mm |
| Height | 3.5 mm |
| Length | 87 mm |
| Drill hole distance, horizontal | 70 mm |
| Drill hole distance, vertical | 17.5 mm |
| Hole diameter | 3.5 mm |
Installation dimensions
| Width of the assembly cutout | 24 mm |
| Length of the assembly cutout | 58 mm |
Material specifications
| Material | PA |
| Flammability rating according to UL 94 | HB |
| Seal material | PTS |
Ambient conditions
| Degree of Protection | IP54 |
| Ambient Temperature (Operation) | -20 °C ... 100 °C |
Why Proax for Phoenix Contact 1660342?
Proax is an authorized distributor of Phoenix Contact 1660342 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
