HC-D 15-ADP/1 DSUB 9
Weight
0.01 kg
Series HC-D

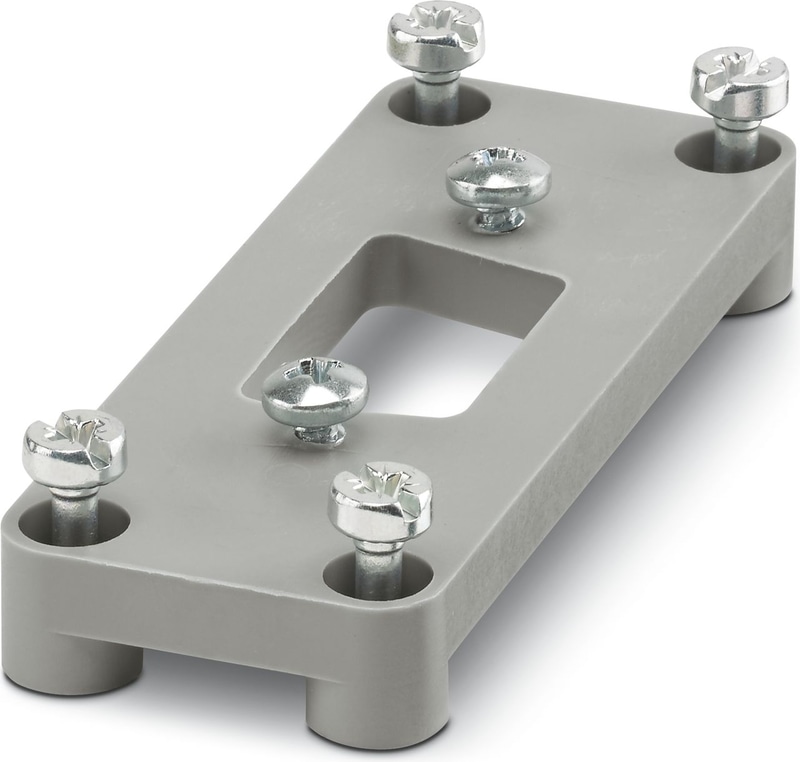

HC-D 15-ADP/1 DSUB 9 - Adapter plate
D-SUB adapter plate, for one D-SUB connector, no. of positions 9, housing series HC-D 15...
Technical Specifications
Product properties
| Type | D15 |
| Number of Positions | 9 |
| Seal present | yes |
Dimensions
| Width | 23 mm |
| Height | 7 mm |
| Length | 57 mm |
Material specifications
| Material | PA |
| Flammability rating according to UL 94 | HB |
Ambient conditions
| Degree of Protection | IP54 |
| Ambient Temperature (Operation) | -20 °C ... 100 °C |
Mounting
| Assembly instructions | With mounting screws: 1) Phillips self-tapping screw 2.9 x 6.2/2) M3 x 10 DIN 84 |
| Assembly instructions | Mounting position of the adapter plate in the sleeve housing: T is visible after mounting in the housing. Mounting position of the adapter plate in the panel mounting base/socket housing/coupling housing: A is visible after mounting in the housing. Mounting position of the D-SUB (after mounting in the housing): in front of the mounting panel (front mounting) |
