1604896
Official DistributorSKU
PHX1604896
MPN
HC-D 15-TFL-53/O1M20S
Weight
0.113 kg
Series HC-D

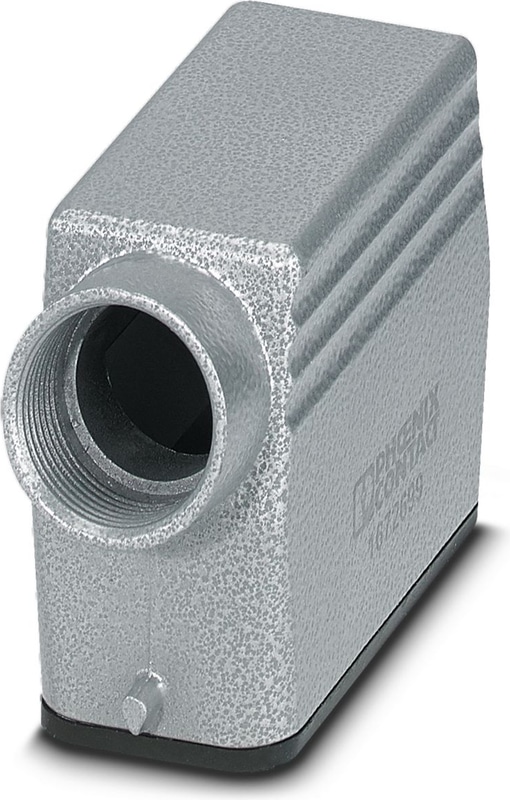

HC-D 15-TFL-53/O1M20S - Housing
HEAVYCON sleeve housing D15, for single locking latch, height 53 mm, with support 1x M20, lateral conductor exit
Technical Specifications
Notes
| General | For contact inserts HC-D15, A10 |
Product properties
| Housing type | Sleeve housing |
| Application | Standard |
| Type | D15 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M20 |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Width | 36 mm |
| Height | 53 mm |
| Length | 63 mm |
Material specifications
| Seal material | NBR |
| Housing Material | die-cast aluminum |
| Housing surface material | Powder-coated, gray |
Mechanical data
| Type of the screw connection | 1x M20 |
| Locking Type | Pin |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Why Proax for Phoenix Contact 1604896?
Proax is an authorized distributor of Phoenix Contact 1604896 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
