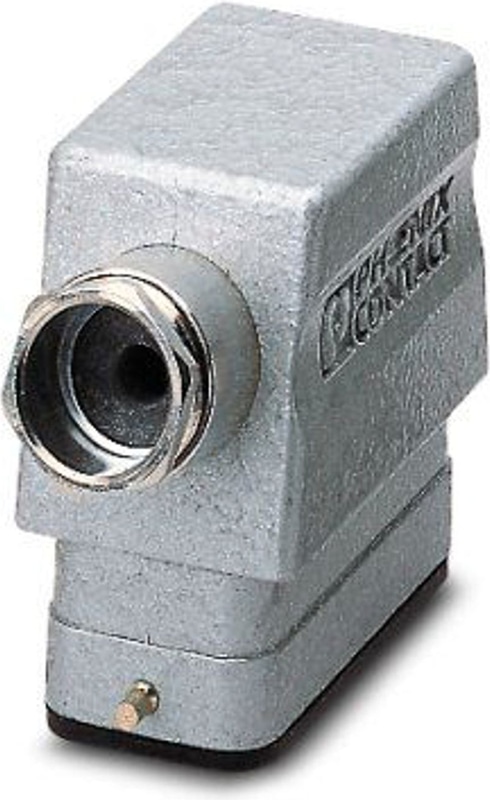

The figure shows version HC-D 15-TFL-66/M1 PG 16 S
1672738
Official DistributorSKU
PHX1672738
MPN
HC-D 15-TFL-66/O1PG21S
Weight
0.169 kg
Series HC-D
HC-D 15-TFL-66/O1PG21S - Housing
Sleeve housing, for single locking latch, height 66 mm, without screw connection, 1x Pg21, lateral cable entry
Technical Specifications
Notes
| General | For contact inserts HC-D15, A10 |
Product properties
| Housing type | Sleeve housing |
| Application | Standard |
| Type | D15 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x Pg21 |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Width | 36 mm |
| Height | 66 mm |
| Length | 63 mm |
Material specifications
| Seal material | NBR |
| Housing Material | die-cast aluminum |
| Housing surface material | Powder-coated, gray |
Mechanical data
| Type of the screw connection | 1x Pg21 |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Why Proax for Phoenix Contact 1672738?
Proax is an authorized distributor of Phoenix Contact 1672738 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
