1772395
Official DistributorSKU
PHX1772395
MPN
HC-D 15-SML/2PG16
Weight
0.236 kg
This product is Not Cancellable/Not Returnable
Series HC-D

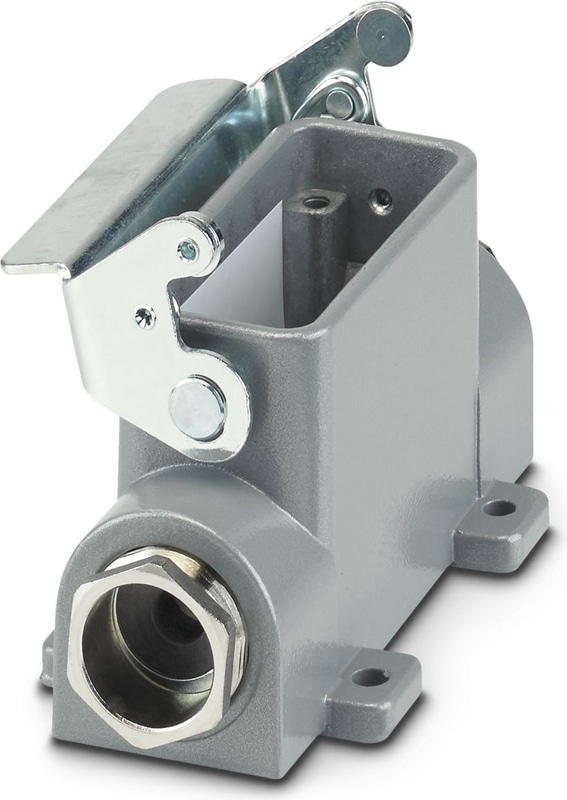

HC-D 15-SML/2PG16 - Housing
Box mounting base, with single locking latch, height 52 mm, with screw connection, 2x Pg16
Documents
Technical Specifications
Notes
| General | For contact inserts HC-D15, A10 |
Product properties
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | D15 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x Pg16 |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | with |
Dimensions
| Width | 50 mm |
| Height | 52 mm |
| Length | 93 mm |
| Wrench size, union nut | 22 mm |
Material specifications
| Material Screw connection | Brass, nickel-plated |
| Seal material cable seal | NBR |
| Housing Material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Steel, galvanized |
Mechanical data
| Type of the screw connection | 2x Pg16 |
| Locking Type | Latch |
Cable/line
| External cable diameter Cable 1 | 7.5 mm ... 15 mm (Cable 1) |
| External cable diameter Cable 2 | 7.5 mm ... 15 mm (Cable 2) |
Connection data
| External Cable Diameter | 7.5 mm ... 15 mm (Cable 1) |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Why Proax for Phoenix Contact 1772395?
Proax is an authorized distributor of Phoenix Contact 1772395 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
