Official DistributorBy ABB
SKU
MPN
2CSM274773R1011
Weight
1 kg

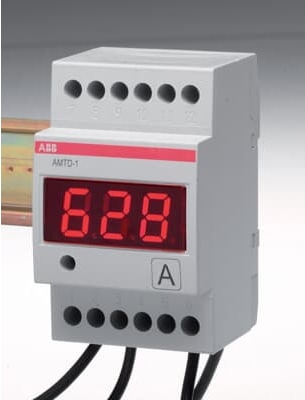

AMTD-1-R is a digital ammeter for ac networks, with programmable relay
Technical Specifications
Technical
| Current Type | AC |
| Frequency (f) | 35 ... 400 Hz |
| Power Consumption (@Pcons) | 4 W |
| Power Loss | 4 W |
| Accuracy | ±0,5% F.S. ±1digit at 25 °C |
| Measurement Scale | End 600 A |
| Measuring Range | 5...600 A |
| Model Number | DIN rail |
| Meter Type | Digital |
| Mounting Type | DIN-Rail |
| Accessories Available | Yes |
Dimensions
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 52.5 mm |
| Product Net Height | 26.5 mm |
| Product Net Depth / Length | 61.5 mm |
| Product Net Weight | 0.350 kg |
Installation
| Instructions and Manuals | No document needed |
Why Proax for ABB AMTD-1-R?
Proax is an authorized distributor of ABB AMTD-1-R and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | AMTD1R |
| Pack Size | 1 |
