Official DistributorBy ABB
SKU
MPN
2CSM299982R1801
Weight
0.267 kg

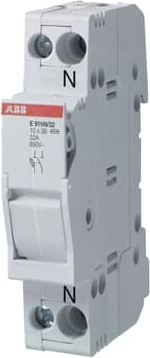

E 94/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
Technical Specifications
Technical
| Standards | UL 4248-1 |
| Standards | UL 4248-4 |
| Rated voltage (UR) | 600 V |
| Rated Insulation Voltage (Ui) | 1+2*Un kV |
| Auxiliary Voltage AC/DC | LED Indicator 24-1000 V AC/DC |
| Rated Current (In) | 30 A |
| Rated Frequency (f) | 60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 3 W |
| Number of Protected Poles | 4 |
| Number of Poles | 4 |
| Tightening torque | 2-2.5 N·m |
| Fuse type | class CC |
| Lock type | Padlockable |
| Mounting Type | DIN-Rail |
| Sealing Type | Sealing Wire |
| Material of Conductor | Copper |
| Options Provided | With LED |
| Recommended Screw Driver | Pozidriv 2 |
| Remarks | For use with CU only 60°C, 75°C or 90°C wire |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Connecting Capacity | Stranded 1x1.5…16 mm² |
| Connecting Capacity | Stranded 2x2…5 mm² |
| Connecting Capacity | Rigid 1x1.5…25 mm² |
| Connecting Capacity | Rigid 2x5 mm² |
| Fuse Size | 10x38 mm |
| Operating Humidity (RHamb) | max. 90% at +20 °C |
| Operating Humidity (RHamb) | 50% at max. +40 °C |
Technical UL/CSA
| Connecting Capacity UL/CSA | Stranded 1x16…3 AWG |
| Connecting Capacity UL/CSA | Stranded 2x14…10 AWG |
| Connecting Capacity UL/CSA | Rigid 1x16…10 AWG |
| Connecting Capacity UL/CSA | Rigid 2x10 AWG |
| Tightening Torque UL/CSA | 18-22 in·lb |
Dimensions
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 0.070 m |
| Product Net Height | 0.085 m |
| Product Net Depth / Length | 0.064 m |
| Product Net Weight | 0.267 kg |
| Built-In Depth (t2) | 64 mm |
Installation
| Instructions and Manuals | No document needed |
