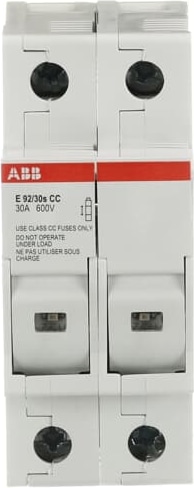

E 92/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
Technical Specifications
Technical
| Standards | UL 4248-1, UL 4248-4 |
| Rated Voltage (Ur) | 600 V |
| Rated Insulation Voltage (Ui) | 1+2*Un kV |
| Auxiliary Voltage AC/DC | LED Indicator 24-1000 V AC/DC |
| Rated Current (In) | 30 A |
| Rated Frequency (f) | 60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 3 W |
| Number of Poles | 2 |
| Number of Protected Poles | 2 |
| Tightening torque | 2-2.5 N·m |
| Fuse type | class CC |
| Lock type | Padlockable |
| Mounting Type | DIN-Rail |
| Sealing Type | Sealing Wire |
| Material of Conductor | Copper |
| Options Provided | With LED |
| Recommended Screw Driver | Pozidriv 2 |
| Remarks | For use with CU only 60°C, 75°C or 90°C wire |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Connecting Capacity | Stranded 1x1.5…16 mm², Stranded 2x2…5 mm², Rigid 1x1.5…25 mm², Rigid 2x5 mm² |
| Fuse Size | 10x38 mm |
| Operating Humidity (RHamb) | max. 90% at +20 °C, 50% at max. +40 °C |
Environmental
| Ambient Air Temperature | Operation -5...+40 °C, Storage -25...+70 °C |
| Degree of Protection | IP20 |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 2 to 13 Hz x= 1 mm peak, 13 to 100 Hz y= 0.7 g peak |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 18 shocks 11 ms |
| RoHS Status | Following EU Directive 2011/65/EU |
Technical UL/CSA
| Connecting Capacity UL/CSA | Stranded 1x16…3 AWG, Stranded 2x14…10 AWG, Rigid 1x16…10 AWG, Rigid 2x10 AWG |
| Tightening Torque UL/CSA | 18-22 in·lb |
Dimensions
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 0.035 m |
| Product Net Height | 0.085 m |
| Product Net Depth / Length | 0.064 m |
| Product Net Weight | 0.133 kg |
| Built-In Depth (t2) | 64 mm |
Certificates and Declarations
| Certification Agency | UL |
