1528536
Official DistributorSKU
PHX1528536
MPN
SACC-CI-M12FS-5CON
Weight
0.001 kg
Series SACC-CI-M

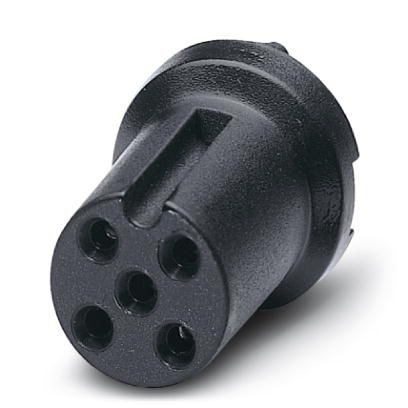

SACC-CI-M12FS-5CON - Contact insert
Sensor/actuator flush-type socket, 5-pos., M12 contact carrier, A-coded, with straight solder connection
Technical Specifications
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 85 °C |
| Degree of Protection | IP67 |
General
| Rated current at 40°C | 4 A |
| Rated voltage | 60 V |
| Number of Positions | 5 |
| Coding | A - standard |
| Status display | No |
| Degree of pollution | 3 |
Material
| Contact Material | CuZn |
| Contact surface material | Au |
| Sealing material | FKM |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 1528536?
Proax is an authorized distributor of Phoenix Contact 1528536 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
